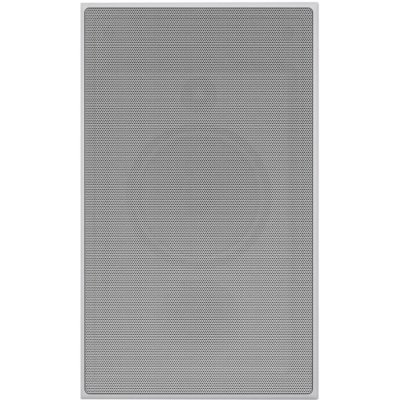

B&W CWM7.4 - In Wall Speaker

The CWM7.4 comprises of a 6-inch bass/midrange driver cone, which has been specially set within a die-cast chassis, allowing a controlled and fast bass response. This driver works in unison with a high quality, 1-inch Nautilus tube-loaded soft dome tweeter. These highly refined components sit within a critically constructed baffle, built from glass-reinforced ABS. The tweeter features a scallop beneath the tweeter, which Bowers says allows for the ultimate high-frequency roll-off, resulting in a far more accurate soundstage and a crisp, clean high-end.

The midrange/bass drive is constructed from a high-quality blue Kevlar, allowing it to move vast amounts of air at once while retaining a quick and responsive performance. This brilliant driver talks to the tweeter flawlessly, thanks to Mundorf componentry found within the crossover. To further enhance bass, Bowers & Wilkins signature flow-port bass reflect porn has been used with this model.

Who are Bowers and Wilkins?

Bowers & Wilkins are a well-known name in hifi and develop some of the most highly advanced traditional loudspeakers on the market today. It's with this prestigious reputation and the wealth of experience that comes with it, that Bowers & Wilkins are able to incorporate the same standard of outstanding sound quality into their in-ceiling and in-wall models.

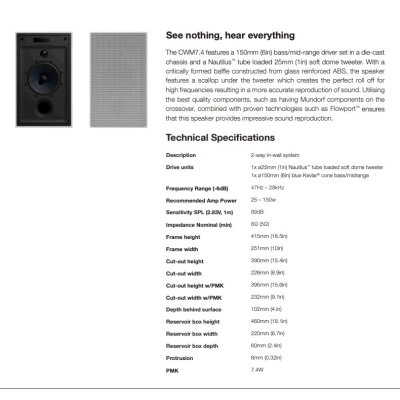

Description 2-way in-wall system

Drive Units 1x ø25mm (1in)

Nautilus tube loaded

soft dome tweeter

1x ø150mm (6in)

blue Kevlar® cone bass/midrange

Frequency Range (-6dB) 47Hz 28kHz

Recommended Amp Power 25 150w

Sensitivity SPL (2.83V, 1m) 89 dB

Impedance Nominal (min) 6

Frame height 415mm (16.5in)

Frame width 251mm (10in)

Cut-out height 390mm (15.4in)

Cut-out width 226mm (8.9in)

Cut-out height w/PMK 395mm (15.6in)

Cut-out width w/PMK 232mm (9.1in)

Depth behind surface 102mm (4.in)

Reservoir box height 460mm (18.1in)

Reservoir box width 220mm (8.7in)

Reservoir box depth 60mm (2.4in)

Protrusion 7mm (0.28in)

PMK 7.4W
