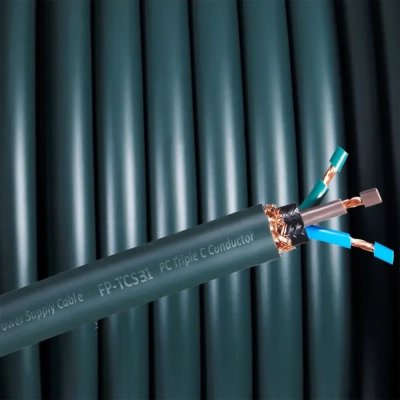

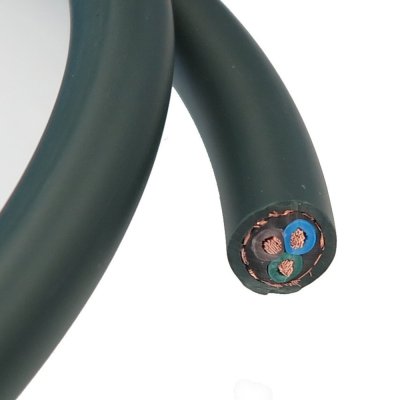

FURUTECH FP-TCS31 α (Alpha) PC-Triple C Power Bulk Cable (20m/R)

RATING :
FP-S35TC & FP-TCS31 have the same specifications
Voltage rating: 20A 125V / 16A 250V

FEATURES :
Designed for audiophiles
Audiophiles are a discerning crowd. They have high expectations of premium power cables, and rightly so. They want a lowered noise floor. Increased resolution. Deeper, tighter bass, improved soundstaging and enhanced imaging. Plus of course a rugged construction with a tight, secure connection. Which is why Furutechs Alpha PC-Triple C conductor was conceived specifically for audiophile use and developed to deliver the purest power transfer possible.

The precision of a sword
The Samurai knew a thing or two about precision engineering: who could argue with the razor-sharp technology of the katana, the Samurai sword? Key to its craftsmanship was a forging process involving repeated rounds of metal folding. Furutechs Alpha PC-Triple C conductor mirrors that technique, using an ingenious proprietary forging process in which variable high pressures are applied to high-purity oxygen-free copper, essentially folding the metal tens of thousands of times. The copper's crystal grain boundaries are thus transformed from a vertical direction into a longitudinal orientation, allowing the electrical signal to flow considerably more smoothly along the completed cable. The copper's crystals become vastly more uniform and well-connected both physically and electrically, creating a much more highly conductive cable.

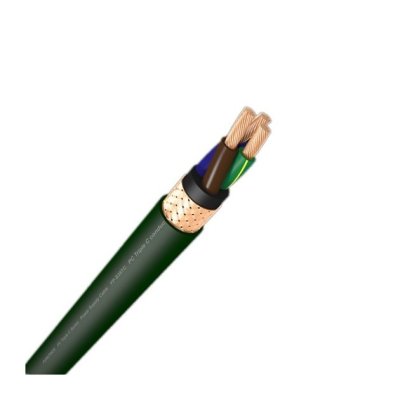

SPECIFICATIONS:
- Alpha PC Triple C conductor: diameter 2.5mm (12 AWG)
- Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 5.0mm
- Inner Sheath: Special grade Flexible PVC (Black) diameter 12.0mm
- Shield: 0.12mm OFC Wire Braid
- Outer Sheath: Flexible PVC (Dark Green) diameter 16.0mm

「Characteristics」
1. Purity > 99.996%　2. Conductivity (EC)101.5　IACS% 3. Tensile strength (TS)　250 MPa　
4. Elasticity　(E) 35% Wire (1.3mmΦ)
