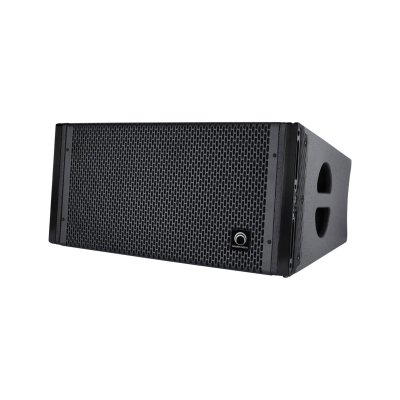

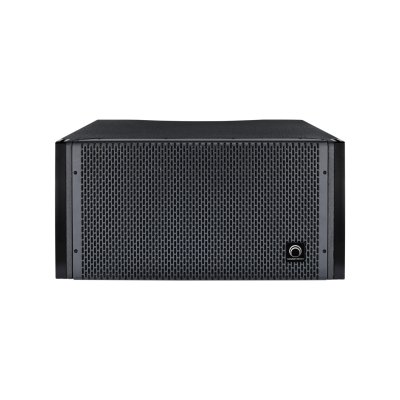

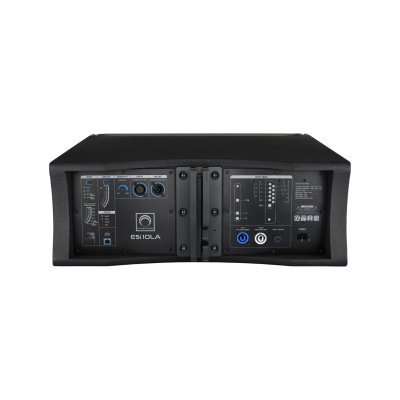

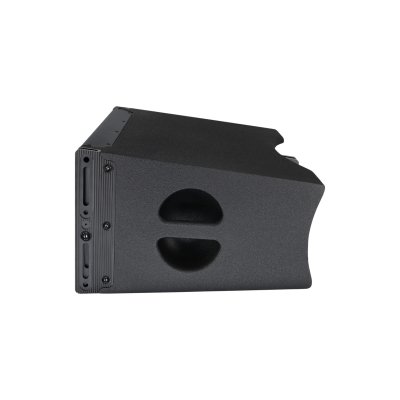

SOUNDVISION ESi10LA / 10-Inch Active Line Array Speaker

Description

ESi10LA is powerful sound Line Array Speaker System, this series adapting to different preferences and scale of applications. With high performance offers various combinations and choices always herewith a proper solution that meets your need. The true modular design provides ESi Line Array series amazing flexibilities to be combined, split and extended freely

ESi10LA Application

Rigging System
Fixed Installation
Ground Stacked
Main PA
Live Sound & Tour

FEATURE
10-inch Active Line Array Speaker
LF Driver: 10 Woofer, 3 voice coil, Neodymium
HF Driver: 1.4 exit, 3 voice coil, Titanium
Coverage angle (H x V) 100° x 15°
Frequency response ±3dB: 65Hz ～ 20KHz
Frequency response -10dB: 50Hz ～ 18KHz
Max. SPL / (Peak): 122dB / 138dB
Max. Powered: 350W / 700W
Built-in Amplifier Class D
Built-in DSP processor.
Functions: DSP Setup, Low cut, USB service
Connection:
Input connectors: XLR 20KΩ balanced
Output connectors: XLR Balanced
Cooling system: Passive radiator
Enclosure: 15mm&18mm Multilayer plywood
Coating: Water resistant black paint
Operating voltage AC 220 ～ 240V, 50/60Hz

Spec
MODEL
ESi10LA
Transducer
LF Driver: 10 Woofer, 3 voice coil, Neodymium  | HF Driver: 1.4 exit, 3 voice coil, Titanium
Frequency Response
±3dB: 65Hz ～ 20KHz
-10dB: 50Hz ～ 18KHz
Max. Powered
350W / 700W
Amplifier
Class D
Sensitivity
98dB  1m/1W
Max. SPL / (Peak)
132dB
Nominal Impedance
8 OHM
Coverage angle (H x V)
100° x 15°
Built-in DSP Processor
Functions: DSP Setup, Low cut, USB service
Connection
Input connectors: XLR 20KΩ balanced | Output connectors: XLR  Balanced
Operating voltage
AC 220 ～ 240V, 50/60Hz
Dimensions (W x H x D)
580 x 454 x 284mm
Net Weight
25.5 Kg
