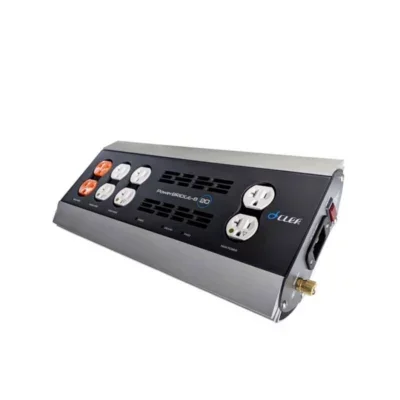

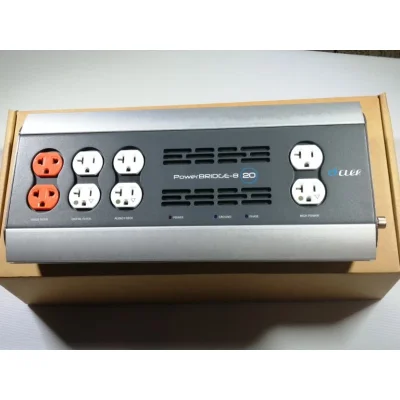

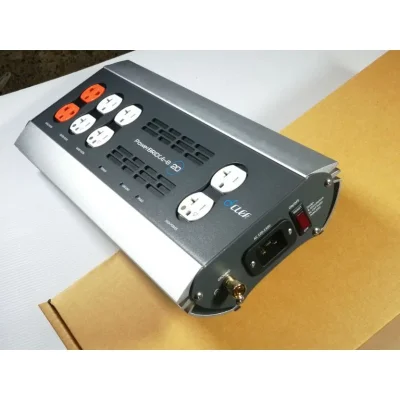

CLEF PowerBRIDGE-8 /20A ปลั๊กกรองไฟ

สเปค
Current rating:
20 amps
Operating Voltage:
190 to 250VAC
Spike Protection Modes:
L-N,N-G,L-G,zero grond leakage
Spike Clamping Voltage:
710 Vpk @200 amps
Response time:
1 nanosecond
Maximum surge current:
39,000 amps (8 x 20 mS pulse)
Maximum spike energy:
760 Joules L-N,190 Joules L-G and N-G,1,140 Joules total
Noise attenuation:
>10 dB @ 10 kHz
>46 dB @ 100 kHz
>100 dB @ 1-10 MHZ
