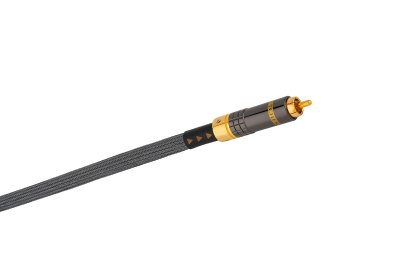

TCHERNOV CABLE SPECIAL COAXIAL IC / DIGITAL RCA (S/PDIF) (1.0 M.)

The proprietary 3-layer CAFPE® conductor insulation drastically decreases dielectric loss and dispersion. A strictly matched wave impedance of 75 Ohm and a double shield, reinforced with the inner layer executed of 50 µ rolled copper foil, practically eliminate the roots of noise-correlated jitter and contribute to virtually unimpeded digital pulses time scale and shape. Being moderately priced, it soars above the same class competition majority with a bunch of clearly audible benefits: a great sense of scope, precise timing and amazing analog accuracy.

Specifications :

*Type: digital coaxial interconnect cable for S/PDIF

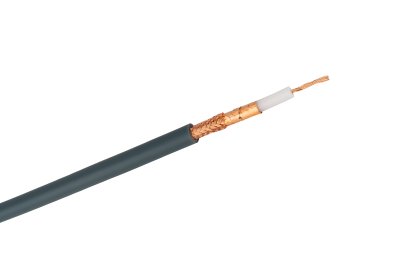

*Conductor: 0.70 mm² (19 x 0.23 mm) multi-stranded BRC conductor

*Wave impedance: 75 Ohm

*Insulation: 3-layer CAFPE®

*Shield: inner layer - 25 µ rolled copper foil, outer layer - >90% BRC braid

*Jacket: combined 2-layer low-loss SPVC with a non-coloured air-foamed inner layer and a solid outer layer with antistatic treatment

*Protective cover: nylon sleeve

*Outer diameter: 8.5 mm

*Termination: RCA/RCA with Classic V2 plug

*Available: in standard terminated lengths

*Country of origin: made in Russia
