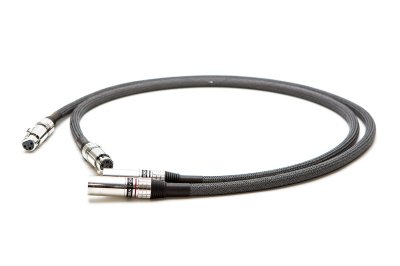

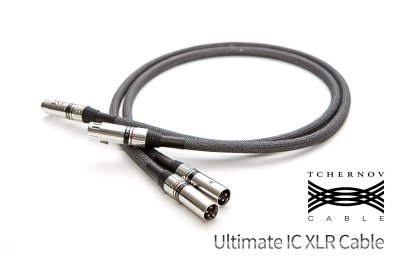

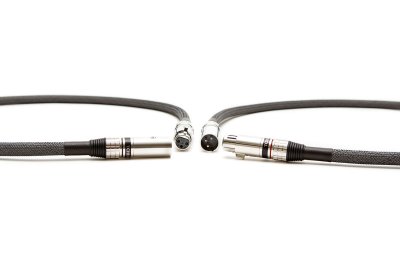

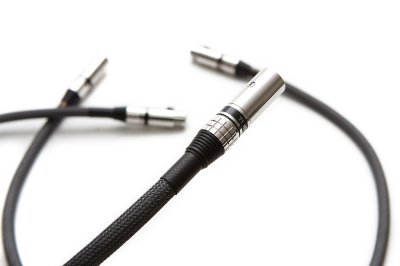

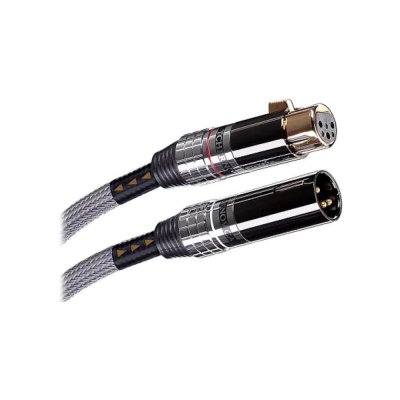

TCHERNOV CABLE ULTIMATE IC XLR (1.0 M.)

Symmetrical High End interconnect cable with 110 Ohm wave impedance and the latest X-Shield SE screen. The Cable-Core "cable core" consists of symmetrically twisted pairs of BRC conductors and cotton strands, fixed together with a common "Semi-Air Belt Insulation" SASDB: 4-layer multi-directional X-Cross winding with fluoroplastic (PTFE Teflon) tapes with a certain force using the "Torsion Fiber Damping" technology FTDA.

Multi-wire BRC+ conductors 2 x 1.00 mm2 (19 x 0.26 mm) in individual "Semi-Air Tape Insulation" SATI: 5-layer multi-directional X-Cross winding with porous fluoroplastic (PTFE, Teflon) tapes. X-Shield SE: 4-layer construction, in which the BRC braid with a density of >60% is enclosed between two multi-directional layers of rolled BRC foil with a thickness of 50 µm. Additional outer layer: braid made of silver-plated tinsel thread with a density of >85%. The TPU Elastollan sheath serves as effective protection against acoustic noise and vibration effects.

• High End class cable with a wave impedance of 110 Ohm;
• X-Shield SE screen;
• multi-wire BRC+ conductors 2 x 1.00 mm2 (19 x 0.26 mm) in individual Semi-air tape insulation;
• braiding made of silver-plated tinsel thread with a density of >85%;
• Elastollan TPU shell.
