TCHERNOV CABLE REFERENCE DSC AC POWER US 20A

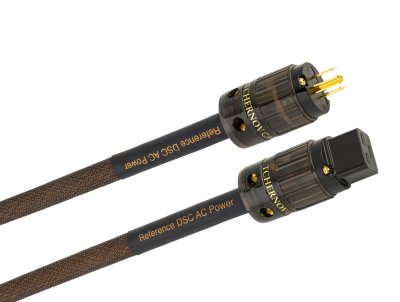

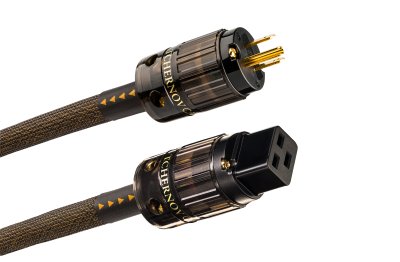

Power cable Tchernov Cable Reference DSC AC Power US 20A (2.65 m)
The design of Reference AC Power is based on the innovative technology of the "Distributed Symmetric Conductor" DSC (Distributed Symmetric Conductor), developed specifically for this cable. DSC provides the maximum group velocity of electromagnetic energy propagation, and also reduces the cable's own radio emission and currents and voltages induced by external fields by 20-40 dB compared to the classic design of three solid conductors. Low radiation losses determine the low and stable impedance of the cable in the range from direct current (0 Hz) to tens of MHz and guarantee a virtually ideal transfer of power energy from the source to the consumer while maintaining minimal external dimensions and good flexibility.

SASDB® belt insulation with an outer cotton bonding layer effectively dampens the X-Shield® "Multi-Element Shield System", minimizing the electrodynamic noise of the conductors and shield. In the shield itself, contact noise is reduced and the stability of the shielding properties during bending is improved.

The highly elastic Elastollan® TPU shell guarantees unprecedented mechanical strength of the structure, long-term stability of all its parameters and protection from external influences.

The unique EM properties of Reference DSC AC Power make it suitable for use in studio equipment, physical experiment equipment, metrological and medical equipment.

• Type: High End shielded power cable for AC 100-240V, 50/60Hz networks
• "Distributed Cross-Section Symmetrical Conductor" DSC: two lines with a total cross-section of 4.50 mm2, each consisting of three identical 1.50 mm2 (28 x 0.26 mm) BRC conductors arranged alternately around a central earthing BRC conductor (28 x 0.26 mm) in a 3+3+1 configuration
• Conductor insulation: SATI® PTFE tapes
• Conductor damping: cotton cords around the perimeter of the structure
• Belt insulation: SASDB® made of PTFE tapes and cotton outer layer
• Screen: X-Shield®
• Shell: thermoplastic polyurethane (TPU) Elastollan® with increased elasticity
• Protective cover: nylon sleeve
• Outer diameter: 18.2 mm
• Termination: IEC-320-C15 or IEC-320-C19 / CEE 7/7 or NEMA 5-15 Reference network connectors with 24K gold-plated high-purity copper contacts and polycarbonate housings with enhanced mechanical and vibration damping properties
