TCHERNOV CABLE REFERENCE DSC AC POWER US

This state-of-the-art High End powerline cord is one of our most influential products.

The 2023 revision incorporates DSC (Distributed Symmetrical Conductor) architecture, the enhanced complex SATI®/SASDB® insulation and the overhauled X-Shield® as the multiple interference protection. DSC with its hexagonal spatial conductor straddling enables instantaneous group wave speed, low and stable impedance in a wider frequency range and better noise immunity up to 20-40 dB if compared to a conventional twisted conductor arrangement. SASDB® with the cotton tape underlayer provides efficient shields decoupling from the Cable Core and virtually eliminates electro-dynamic noise, generated in the shield. X-Shield® with the improved shielding properties upon curving and reduced contact noise in the shield structure rejects most of emitted interferences throughout the entire frequency spectrum. High-damping jacketing with TPU Elastollan® exemplifies unmatched mechanical strength and vibration absorption. With almost unlimited dynamic range it is an ideal solution not only for home AV, but for professional use in recording studios, as well as for ultra wide dynamic range frequency measurement systems and medical equipment.

Specifications :

*Type: High End shielded powerline cord for 100-240V AC, 50/60Hz

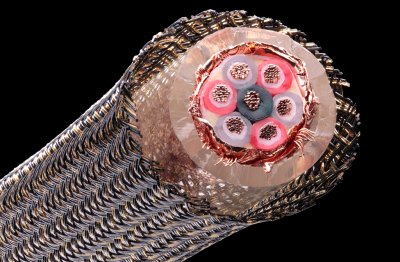

*Distributed Symmetrical Conductor (DSC): two 4.50 mm2 transmission lines, each comprised of three similar 1.50 mm2 (28 х 0.26 mm) BRC conductors, configured around a central grounding BRC conductor (28 х 0.26 mm) in a hexagonal structure 3+3+1 with a maximum packing factor

*Insulation: SATI® with more PTFE tapes

*Conductor damping: radial cotton cords

*Dielectric binding: SASDB® with the bonding cotton tape layer

*Shield: the latest generation of X-Shield®

*Jacket: thermoplastic polyurethane (TPU) Elastollan® with increased elasticity

*Protective cover: nylon sleeve

*Outer diameter: 18.2 mm

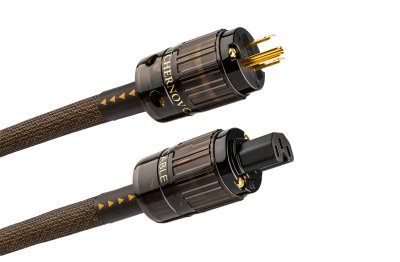

*Termination: IEC-60320-C15 or IEC-60320-C19 / CEE 7/7 Schuko or NEMA 5-15 Reference AC connectors with 24K gold plated microalloyed copper contacts and anti-resonant polycarbonate bodies for EUR/USA mains variants

*Available: in standard terminated lengths

*Country of origin: made in Russia
