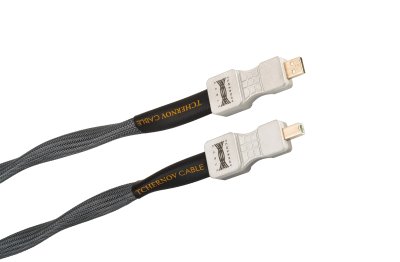

TCHERNOV CABLE PRO USB A-B IC (1.0 M.)

A robust USB 2.0 digital cable was the first to employ the innovative DSPL (Diverged Signal & Power Lines) configuration.

It was built-to-order for one of the leading Pro studios to unleash the delicate equipments full potential. DSPL with its signal & power lines straddling ensures a multiple reduction of mutual interference and external EM field influence over the digital data flow. Impeccable CNC machined aluminum holders encasing gold plated microalloyed copper contacts highlight the obsessive attention to detail that defines all our products. Digital devices, linked with Pro USB A-B IC perform with a sensational fine detail definition, increased focus and compelling analog realism.

Specifications :

*Type: high-speed USB 2.0 digital cable

*Supports: up to 32-bit/768kHz (PCM/DSD1024) Hi-Res Audio

*Signal line: 2 x 0.35 mm² (7 x 0.26 mm) multi-stranded BRC conductors

*Power line: 2 x 0.35 mm² (7 x 0.26 mm) twisted multi-stranded BRC conductors

*Insulation: 2-layer CAFPE® with the extended inner air-foamed PE layer

*Dielectric binding: SDB with PTFE tapes

*Shield: X-Shield®

*Jacket: Combined 2-layer SPVC jacket with a non-coloured inner layer and an outer layer with antistatic treatment

*Protective cover: nylon sleeve

*Outer dimensions: 10 x 21 mm

*Termination: CNC machined aluminium cased USB A-B connectors with 24K gold plated microalloyed copper contacts

*Available: in standard terminated lengths

*Country of origin: made in Russia
