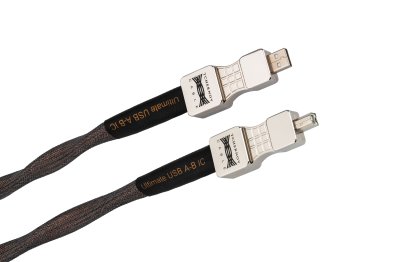

TCHERNOV CABLE ULTIMATE USB A-B IC (1.65 M.)

Our flagship USB 2.0 digital cable is stunningly engineered and handcrafted around the DSPL (Diverged Signal & Power Line) configuration and the BRC+ conductors with the unsurpassed impurity ratio.

DSPL with its signal & power lines straddling ensures a multiple reduction of mutual interference and external EM field influence over the digital data flow especially at high transmission rates. Microalloyed copper contacts are encased with the hefty CNC machined palladium plated brass holders for extra UHF shielding. Such a remarkable assembly highlights our obsessive attention to detail. Ultimate USB A-B IC totally redefines what audiophiles might think is possible with the USB 2.0 standard. It creates a thrilling musical performance with amazing «right there» realism.

Specifications :

*Type: high-speed USB 2.0 digital cable

*Supports: up to 32-bit/768kHz (PCM/DSD1024) Hi-Res Audio

*Signal line: 2 x 0.35 mm² (7 x 0.26 mm) twisted multi-stranded BRC+ conductors

*Power line: 2 x 0.35 mm² (7 x 0.26 mm) twisted multi-stranded BRC+ conductors

*Insulation: SATI® with more PTFE tape layers

*Dielectric binding: SASDB® with the bonding cotton tape layer

*Shielding: the latest generation of X-Shield®

*Jacket: thermoplastic polyurethane (TPU) Elastollan® with increased elasticity

*Protective cover: nylon sleeve

*Outer dimensions: 10.5 х 22 mm

*Termination: CNC machined palladium plated brass USB A-B holders encasing 24K gold plated microalloyed copper contacts

*Available: in standard terminated lengths

*Country of origin: made in Russia
