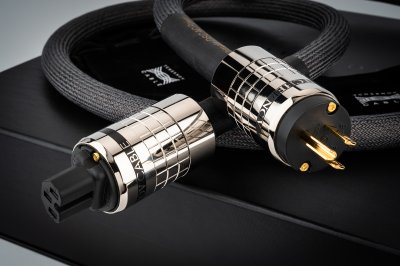

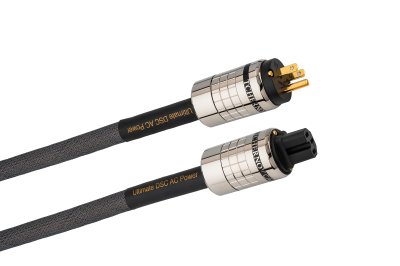

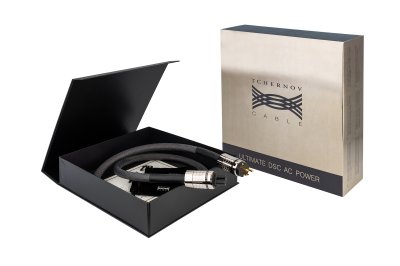

TCHERNOV CABLE ULTIMATE DSC AC POWER US (1.65 M.)

Our flagship powerline cord builds on the leading-edge DSC (Distributed Symmetrical Conductor) architecture and the new from scratch BRC+ conductors with the unsurpassed impurity ratio.

DSC enables instantaneous group wave speed, low and stable impedance from DC (0Hz) to tens of MHzs and significant EMI reduction up to 20-40dB if compared to a conventional twisted conductor arrangement. X-Shield® with the improved shielding properties upon curving and reduced contact noise in the shield structure rejects most of emitted interferences throughout the entire frequency spectrum. The fully customized Ultimate AC connectors with sturdy double-shell construction guarantee minimal transient resistance, long-lasting tight contact and extra UHF shielding. The new Ultimate DSC AC Power is the best powerline cord we ever produced. Its probably the final choice for the most discriminating audiophile.

Specifications :

*Type: Ultra High End 3-pole powerline cord for 100-240V AC, 50/60Hz

*Distributed Symmetrical Conductor (DSC): two 6.00 mm2 transmission lines, each comprised of three similar 2.00 mm2 (37 х 0.26 mm) BRC+ conductors, configured around a central grounding conductor (37 х 0.26 mm) in a hexagonal structure 3+3+1 with a maximum packing factor

*Insulation: SATI® with more PTFE tape layers

*Conductor damping: radial cotton cords

*Dielectric binding: SASDB® with the bonding cotton tape layer

*Shield: the latest generation of X-Shield®

*Jacket: thermoplastic polyurethane (TPU) Elastollan® with increased elasticity

*Protective cover: nylon sleeve

*Outer diameter: 19 mm

*Termination: IEC 60320-C15 or IEC-320-C19 / CEE 7/7 Schuko or NEMA 5-15 Ultimate AC connectors with 24K gold plated microalloyed copper contacts and double-shell bodies for EUR/USA mains variants

*Available: in standard terminated lengths

*Country of origin: made in Russia
