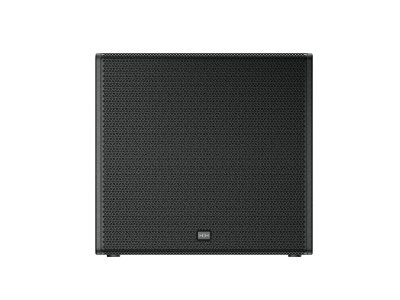

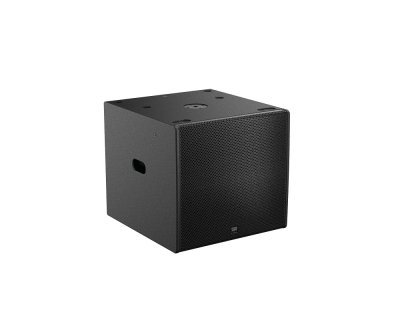

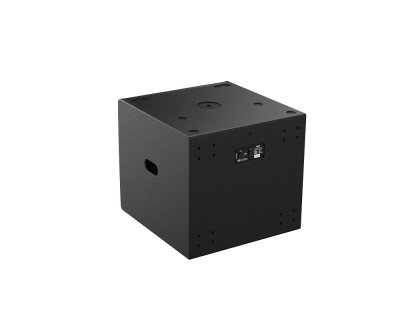

HH Electronics TNA-1800S - Passive sub for TNA compact line array - 18 inch LF driver

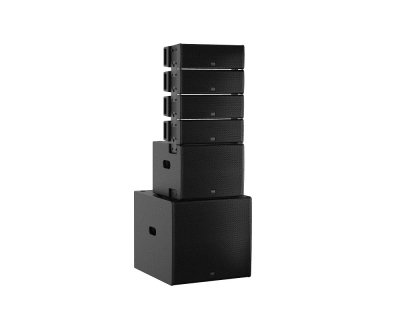

The TNA-1800S passive line array subwoofer features a high power 18" low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1800S can be installed quickly and easily. The TNA-1800S offers a max SPL of 127 dB and offers a frequency response as low as 32Hz. When combined with the TNA-2051 and TNA-1200S, the TNA-1800S offers an ideal venue installation or point source solution. Ideal for venues, schools, sports, gyms, hotels and more.

Features :
Frequency Response (-10)
30Hz - 1kHz

Frequency Response (-3)
40Hz - 500Hz

Power
500W AES, 2000W Peak

Sensitivity (1W/1M)
102 dB

Max SPL (1M) (Peak)
135 dB

Nominal System Impedance
4 Ohm

Input Connector
NL4 ±1 Twist Lock Connector

Link Connector
NL4 ±1 Twist Lock Connector

LF Driver
1 x 18 Inch High sensitivity HH designed driver

Cabinet
15mm Plywood

Finish
Painted Black (White finish optional, subject to MOQ)

Mounting Points
6x M10 Penn Elcom tie down/flying points & M20 Threaded Pole Mount

Grille
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined

Unit Dimensions (Hwd)
556 x 600 x 641mm, 21.9" x 23.6" x 25.2"

Unit Weight
34.38Kg, 75.8 lbs

Carton Dimensions (Hwd)
660 x 695 x 730mm, 26" x 27.4" x 28.7"

Packed Weight
42Kg, 92.6 lbs
