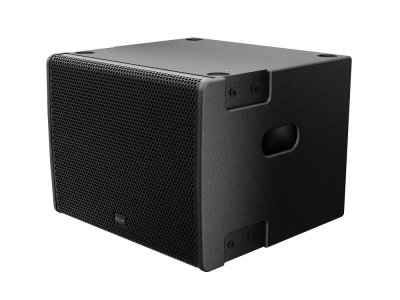

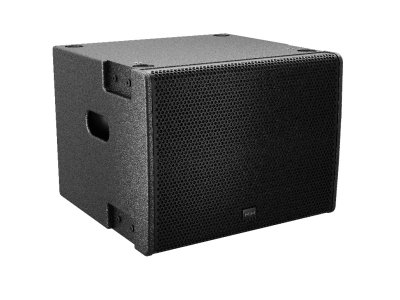

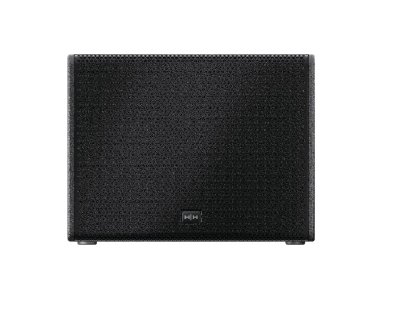

HH Electronics TNA-1200S - Passive sub for TNA compact line array - 12 inch LF driver

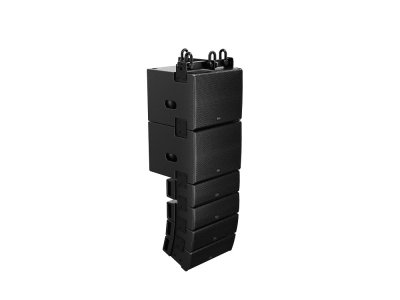

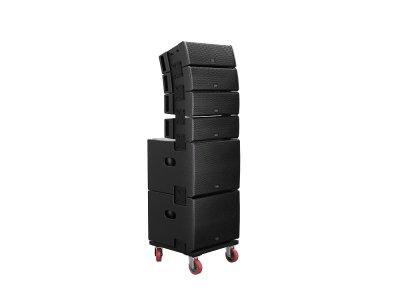

The TNA-1200s passive line array subwoofer features a high power 12-inch low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1200s can be installed quickly and easily. The TNA-1200s delivers a max SPL of 125dB with a wide frequency range of 35hz > 2kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

Features :
Frequency Response (-10)
35Hz - 2kHz

Frequency Response (-3)
40Hz - 500Hz

Power
300W AES, 1200W Peak

Sensitivity (1W/1M)
95dB

Max SPL (1M) (Peak)
126dB

Nominal System Impedance
8 Ohm

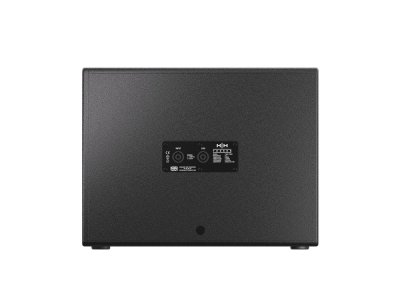

Input Connector
NL4 ±1 Twist Lock Connector

Link Connector
NL4 ±1 Twist Lock Connector

LF Driver
1 x 12 Inch High sensitivity HH designed driver

Cabinet
15mm plywood cabinet

Finish
Painted Black (White finish optional, subject to MOQ)

Mounting Bracket
TNA-BRK1 for suspended mounting (available separately)

Mounting Points
M8 fixings for optional TNA-BRK1 flying bracket assembly or TNA-DF1 dolly frame assembly (available separately)

Grille
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined

Dimensions
365 x 460 x 470mm, 14.4" x 18.1" x 18.5"

Unit Weight
18.8 Kg, 41.4 lbs

Carton Dimensions (Hwd)
535 x 430 x 530mm, 21.1" x 16.9" x 20.9"

Packed Weight
22.5Kg, 49.6 lbs
