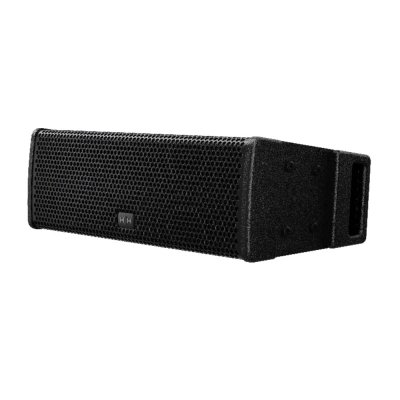

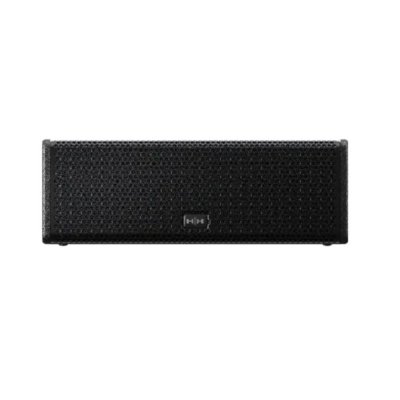

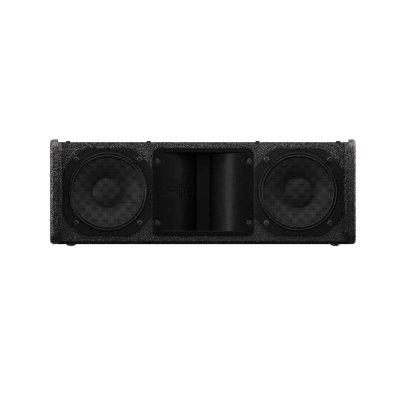

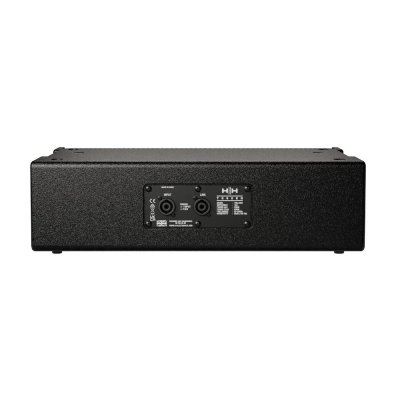

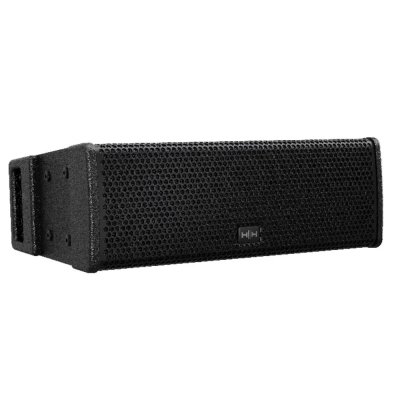

HH Electronics TNA-2051 - Passive 2-way enclosure - 2x5 inch LF drivers + 1 inch Celestion CD

The TNA-2051 passive line array mid/high enclosure features dual 5-inch HH designed drivers alongside a 1.33-inch custom designed Celestion compression driver, mounted to a custom designed Celestion wave guide and horn. Equipped with integrated rigging hardware, the TNA-2051 can be installed efficiently. The TNA-2051 delivers a max SPL of 124dB with a wide frequency range of 65Hz > 20kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

Features :
Frequency Response (-10 dB)
65Hz 20kHz

Frequency Response (-3 dB)
100Hz 18kHz

Power
200W AES
800W Peak

Sensitivity (1W/1M)
94dB

Max SPL (1M) (Peak)
123dB

Nominal System Impedance
16 Ohms

Input Connector
NL4 ±1 Twist Lock Connector

Link Connector
NL4 ±1 Twist Lock Connector

HF Driver
1 x 1.33 Celestion Compression Driver mounted to a Celestion-designed wave guide and horn

LF Driver
2 x 5 HH-designed Drivers

Crossover Frequency
2000Hz

Nominal Dispersion
120° x 60° (or 120° x 30° in single-point configuration)

Splay Angle Settings
Dual Angle: 0° and 8°

Recommended HPF Frequency
100Hz

Cabinet
15mm Plywood

Finish
Painted Black (White finish optional, subject to MOQ)

Mounting Bracket
TNA-BRK1 for suspended mounting

Mounting Points
M8 fixings for optional TNA-BRK1 flying bracket assembly (available separately)

Grille
1.5mm Thickness Steel, Hexagonal Mesh, Acoustic Foam Lined

Unit Dimensions (HxWxD)
158 x 460 x 265mm (6.2 x 18.1 x 10.4)

Unit Weight
8.4kg (18.5 lbs, each)

Carton Dimensions (HxWxD)
410 x 330 x 530mm (16.1 x 13 x 20.9)
