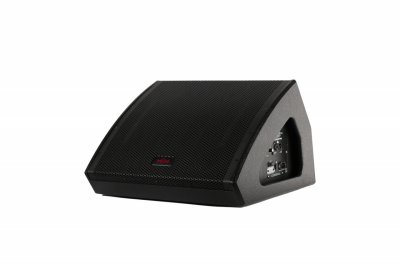

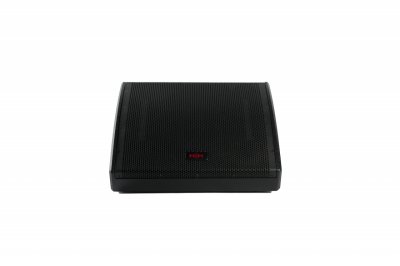

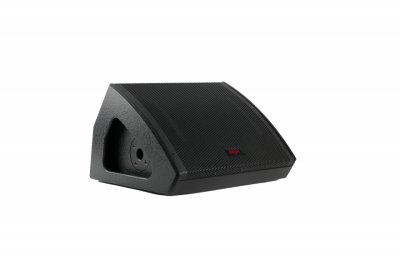

HH Electronics TRM-1201 2-way active monitor - 1400W - 12 inch LF driver + 1.35 inch CD

Active Monitor 12"
The Tensor TRM-1201 is a compact, active monitor; featuring a HH high-grade 12-inch driver with 1-inch compression driver. The ultra-efficient 1400 Watt Class D amplifier delivers optimal power output for demanding applications. Dual audio modes provide effective voicing options for versatile operation, whether that's live band, DJ or conference.

The 6.3mm / XLR combination input socket enables simple connection. Combined with a painted, light-weight solid plywood enclosure with 35mm pole mount for tripod mounting, the Tensor TRM-1201 is the perfect active monitoring solution.

• 1400 Was High Power Class D Amplifier
• 12-inch High Performance Driver with 1-inch High Frequency Compression Driver
• XLR, 1/4-inch Combinaon Input Socket with 2 Audio Modes
• Robust, Solid Plywood Enclosure with Integrated Handles

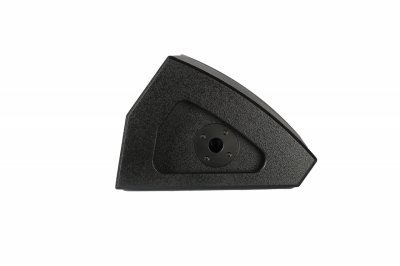

• 35mm Distance Pole Mount and Protecve Steel Grille
• Applications
• Onstage performance monitoring
• Conference or public address
• Venue installaon
• Live music
• DJ

SPECIFICATIONS :

Model: TRM-1201

System Type: 12" Active Powered Stage Monitor, Bass Reflex

Frequency response

*50Hz - 20KHz (-10dB) (FOH mode)

*55Hz - 18KHz (-3dB)

LF Driver 12-inch HH Driver

HF Driver 1 inch HH Compression Driver

Max SPL 1m 130 dB SPL

Coverage Angle 80° x 80°

Crossover Frequency 2.8KHz

AMPLIFIER :

Power Rating 350W RMS, 700W Continuous, 1400W Peak

Limiter Dual Band Limiters

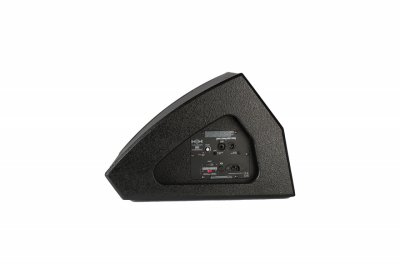

Input Connector Balanced Female XLR/6.3mm Jack Combi Socket

Output Connector Balanced Male XLR with ground lift switch

Signal Indicators Power, Signal Present, Clip Indicator

Controls Volume, Monitor/FOH mode

AC Power 100V-120V~/220-240V~+ 50/60Hz User Switchable

AC Power Consumption 300W

AC Power Inlet IEC C14 INLET

Enclosure :

Cabinet: Acoustically optimised Plywood cabinet with integrated carry handles

Finish: Painted Black

Monitor Angle: 35Pole Mount: 35mm

Pole Mount Socket Included

Grille: Rear reinforced heavy gauge steel grille with acoustic foam
