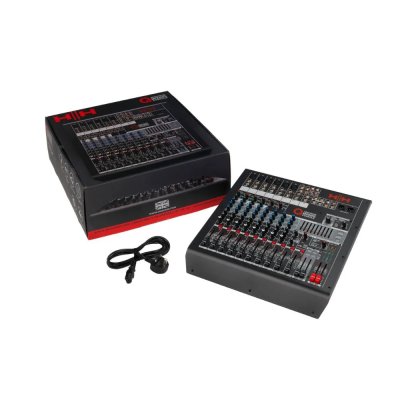

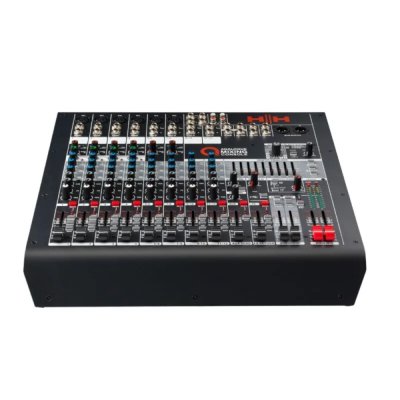

HH Electronics Q12FX Compact 12-channel analogue mixing console High-Quality DSP Effects 2x2 USB Audio interface I/O

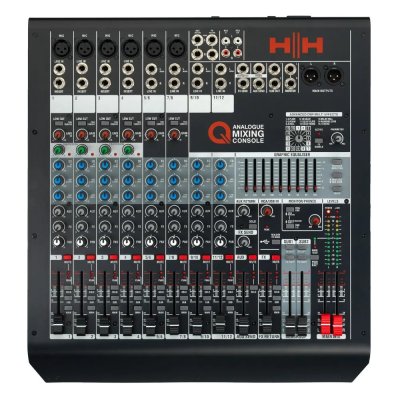

The Q12FX is a 12-channel analogue mixing console designed and engineered in the UK. The Q12FX consists of 12 input channels: 6 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.

Channels 1 to 4 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.

16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q12FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q12FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q12FX a complete portable powerhouse for traveling musicians and engineers alike.

Features :
Mic Inputs
6 x XLR (CH1-8)

Line Inputs (Mono)
4 x ¼ (6.3mm) TRS (CH1-4)

Line Inputs with Mic (Stereo)
2 x Stereo ¼ (6.3mm) TRS (CH5-8)

Line Inputs (Stereo)
2 x Stereo ¼ (6.3mm) TRS (CH9-12)

EQ
3-Band (±15dB):
Low: 100Hz
Mid: 2.5kHz
High: 12kHz (per channel)

Low Cut
75Hz cutoff @ 18dB/Octave (CH1-8)

Compressor
2:1 Ratio
9dB Makeup Gain
-8dBu Input Threshold (Max Compression, CH1-4)

Main Outputs
Balanced Stereo XLR

Monitors
Stereo ¼ (6.3mm) TRS Sockets

Sub Outputs
2 x ¼ (6.3mm) TRS Sockets

FX Send
Mono ¼ (6.3mm) TRS

Aux Send
Mono ¼ (6.3mm) TRS

Phones
Mono ¼ (6.3mm) TRS

RCA
Stereo Phono Sockets

เอฟเฟกต์
16 Reverb and Delay Effects with Enable Switch and Parameter Control

Graphic EQ
Master 9-Band Graphic EQ with Feedback Detection and On/Off Toggle

USB Audio
Inputs/Outputs: 2-in/2-out
Bit Depth: 16-bit, 24-bit
Sample Rate: 48kHz

AC Power
Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord Included)
