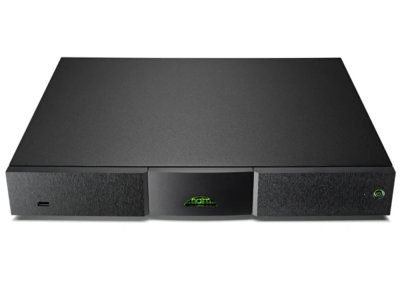

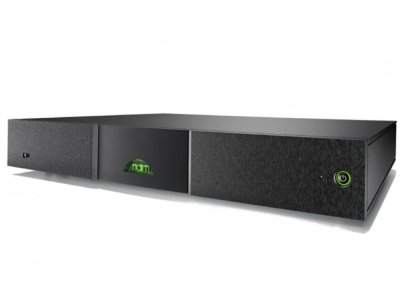

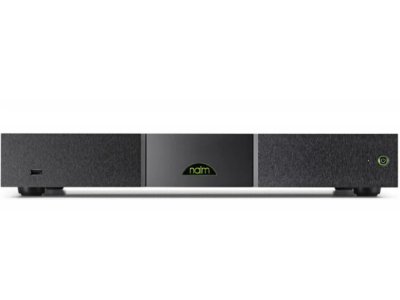

Naim ND5 XS 2 Streamer

The ND5 XS2 is a versatile player with innovative streaming technology, including high-res UPnP streaming, AirPlay, Chromecast, Bluetooth, Spotify Connect, TIDAL, Qobuz, Roon compatibility, internet radio, and multiroom streaming. It also has digital and USB inputs. The player benefits from classic Naim engineering, with carefully selected parts, an oversized toroidal transformer, and decoupled PCB boards for natural and engaging sound quality.

Features
This device streams high-quality audio files from different sources and supports various music formats. It has two digital inputs and two optical inputs that support optimal connection to external sources. It features a front-panel USB port, Bluetooth connectivity, and RC5 system integration. It's Roon ready, multiroom and Party Mode compatible, and has an iOS and Android Focal & Naim App.

Technology & Savoir-faire
The ND5 XS 2 streaming section uses the latest Naim network card with LVDS, decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. The new streaming board allows the DAC clock to control the audio data flow, and the data is oversampled in a SHARC DSP with 40-bit accuracy before being fed to the PCM1791A Burr-Brown digital-to-analogue converter.

Specifications :

Technical Specifications
Audio Format :
WAV - up to 32bits/384kHz
FLAC and AIFF - up to 24bit/384kHz
ALAC (Apple Lossless) - up to 24bit/384kHz
MP3 - up to 48kHz/320kbit (16bit)
AAC - up to 48kHz/320kbit (16bit)
OGG and WMA - up to 48kHz (16bit)
DSD - 64 and 128Fs
M4A - up to 48kHz/320kbit (16bit)
Note: Gapless playback supported on all formats.
Product type : Streamer

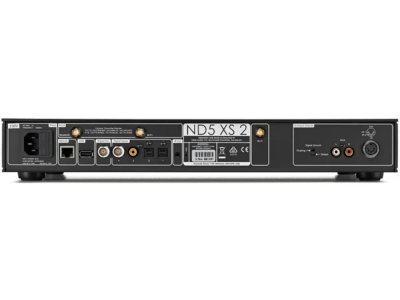

Inputs/Outputs Specifications
Analogue outputs :
1 x RCA pair
1 x 5-pin DIN
Digital inputs :
2 x optical TOSLink (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit/192kHz, DoP 64Fs)
Digital outputs : 1 x coaxial BNC (up to 24bit/192kHz)
USB ports : 2 x USB Type A socket (front and rear - 1.6A charge)

Streaming / Sources
WiFi :
2 x Wi-Fi antennae
Internet Radio Formats : Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS
Multi-Room :
Play several streamers in simultaneously
Party Mode: sync up to six Naim streamers and control them via the Focal & Naim app
Network : Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac), BLE v4.2
Streaming : Apple AirPlay, Bluetooth, Chromecast, Internet Radio, Qobuz, Roon Ready, Spotify®Connect, , TIDAL, UPnP

Control
App control : Focal & Naim App
Control system : Remote Control
Supported mobile operating system : Android, iOS
Updates : Update your system by wireless connection via the Focal & Naim application

Power Supply
Power consumption in standby mode (deep sleep) : < 0.5W
Power consumption in network standby mode : < 2W
Consumption in normal use : 20 W
Mains cable : PowerLine Lite
Mains power supply : 115V or 230V, 50/60Hz

Design
Depth : 30.1 cm / 11.8 in
Height : 7 cm / 2.75 in
Width : 43.2 cm / 17 in
Weight : 6.6 kg / 13 lb
