Naim SuperLine Phonostage

Vinyl replay makes a huge contribution to the enjoyment of recorded music. At its best, vinyl has a uniquely engaging and musical quality, and with the SuperLine phonostage, the best of vinyl just gets better. The SuperLine is a high performance moving-coil phono stage built in the Naim Audio aluminium reference enclosure with an anodised front panel. It brings Naim Audio's analogue electronic design and environmental isolation techniques to bear on the most delicate analogue element of any hi-fi system - the moving-coil phono signal. The SuperLine requires an external power supply - either the power supply output of an appropriate Naim Audio preamplifier or the SUPERNAIT and NAIT XS integrated amplifiers, or, for optimum performance, a dedicated FlatCap XS, HiCap or SuperCap. SuperLine brings out the best in vinyl replay - timing, pitch accuracy, clarity, detail, and the unmistakable naturalness that records can deliver in abundance.

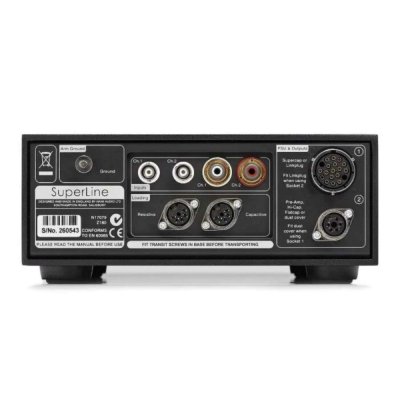

• RCA and BNC inputs
• Moving coil only, with cartridge impedance matching adjustment (20 different load combinations possible)
• Suspension system for delicate electronics as used in 500 Series
• 24V supply voltage from NaimUniti 2, NAIT XS 2, SUPERNAIT 2, Hi-Cap-DR, Nait XS-3 & Supernait 3, Naim Audio preamplifier (except NAC-N 172 XS), FlatCap XS, HiCap or SuperCap required
• Bead-blasted, black anodised front panel

Specifications :

Technical Specifications
THD+N : <0.005% (500μV at 1kHz)

Inputs/Outputs Specifications
Analogue inputs :
BNC, RCA
Other inputs : 2 x 5-pin DIN for loading plugs

Phono specifications
Charging :
10kΩ, 1k, 500Ω, 220Ω, 100Ω, 100pF, 1nF, 5.6nF, 10nF
Phono gain :
64dB at 1kHz, SuperLine E: 58dB at 1kHz
RIAA Accuracy : ±0.1dB (20Hz - 20kHz)

Design
Depth : 314 mm /
Height : 87 mm /
Width : 207 mm /
Weight : 7.7 kg /
