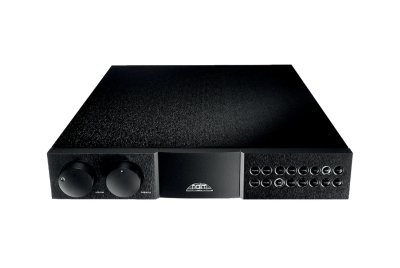

Naim NAC 552 Preamplifier

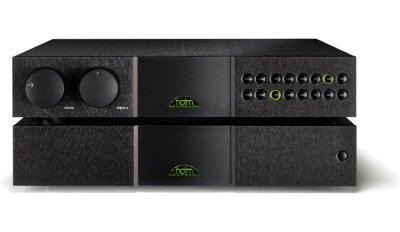

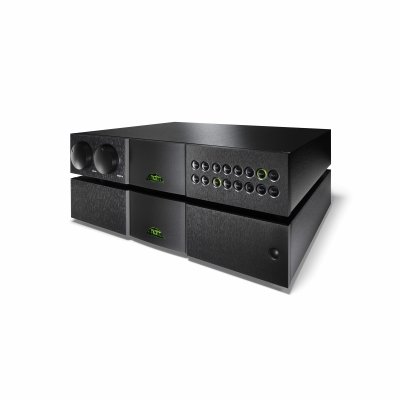

The NAC 552 has a distinctive two-box configuration that sets it apart from the competition. It's one of the best preamplifiers weve ever produced and is considered among the best in the world.

Features :
- The two-box configuration is optimal for rejecting electromagnetic interference.
- The split-rail power supply features an 800VA toroidal transformer, three smoothing capacitors, and a new Discrete Regulator (DR).
- The fully suspended sub-chassis provides superior isolation of sensitive circuit boards.
- The AV bypass mode simplifies connection to an existing AV system.
- Both DIN and RCA inputs are supported to facilitate connection to a wider range of systems.
- Independent listen and record banks provide maximum flexibility.
- Assignable inputs enhance usability with a range of sources.

Technology & Craft

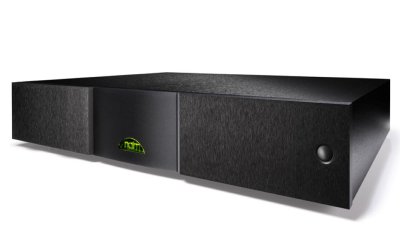

Every component in our flagship 500 Series range, including the NAC 552, has been developed using the latest technology and the finest materials available. We've gone to great lengths to ensure that the two-box design is a true reflection of Naim Audio's classic style, with the power supply components housed in a separate enclosure to achieve minimal electromagnetic interference.

The NAC 552 has sensitive electronics mounted on a brass sub-chassis and fully suspended on coil springs to minimize the impact of vibration. Precision rotary potentiometers maintain musical integrity and ensure long-term stability. The device has six inputs that can be selected from the front panel or remote control, including two RCA phono-type connectors for alternative components.

Specifications :
Inputs/Outputs Specifications
Analogue gain :
29dB / Max volume at 22dB
Analogue inputs :
7 x DIN,
2 x RCA
Other inputs : Two inputs configurable for unity gain

Power Supply
Consumption in normal use : 15 W
Mains cable : PowerLine
Mains power supply : 115V or 230V, 50/60Hz

Design
Depth : 314 mm / 12.3 in
Height : 87 mm / 3.4 in
Width : 432 mm / 13.4 in
Weight : 12.9 kg /

Compatibility
Power Supply Options :
552 PS
