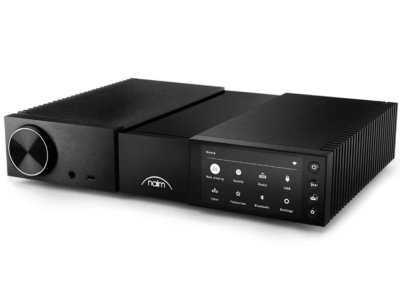

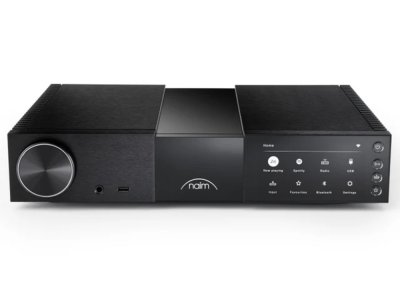

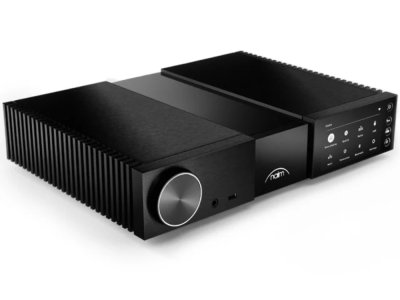

Naim NSC 222 Streaming preamplifier

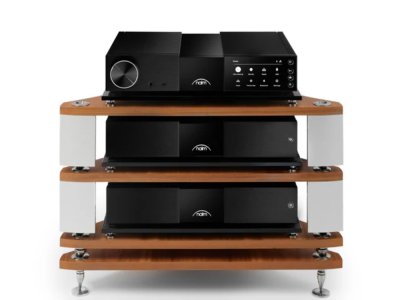

The NSC 222 is a versatile streaming preamplifier designed to elevate your listening experience. With its cutting-edge engineering and elegant British design from Naim, this product delivers impeccable sound quality. It allows you to stream music and radio seamlessly and supports vinyl and audio headphones. Plus, it functions as a high-performance analogue preamplifier. To create an exceptional setup, simply pair it with the NAP 250 power amplifier and your favourite loudspeakers. Enjoy unparalleled audio quality like never before.

Highly Versatile
Embark on a delightful musical journey with the versatile NSC 222 preamplifier. You can access a vast array of music streaming platforms like Spotify, TIDAL, Qobuz, and many online radio stations with ease. The NSC 222 preamplifier can handle bitrates up to 32bit/384kHz, ensuring that you experience the best sound quality. If you're a vinyl lover, you'll be pleased to know that the NSC 222 has a MM phono input. Additionally, the NSC 222 is equipped with the full Naim technology for headphone listening, derived from the award-winning Uniti Atom Headphone Edition amplifier-DAC, providing you with a world-class solo listening experience.

Focal & Naim App
The streaming platform on NSC 222 is state-of-the-art and has been created by our team of experts in Salisbury. It delivers unparalleled performance, functionality and ease of use, and provides a true Hi-Fi experience with the renowned Naim sound. The Focal & Naim App, which is compatible with both Apple and Android devices, simplifies the control of your NSC 222 and allows you to connect other music systems in your home, creating a stunning multi-room setup. With the App, you can easily access all your music, including your preferred radio stations, streaming services, and playlists, and explore artist discographies and biographies.

The story of Naim and Aluminium

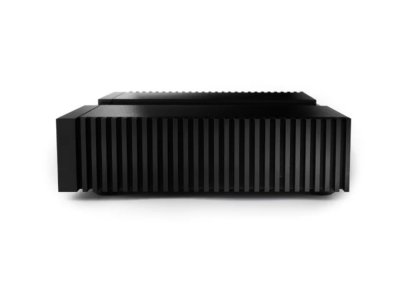

Naim's products are designed to be modern, timeless, and performance-driven. The NSC 222 has a sleek and innovative design, crafted with high-quality materials to ensure a smooth and enjoyable user experience. Our founder, Julian Vereker, was ahead of his time in using aluminium to protect our electronic components from magnetic fields, temperature fluctuations, and unwanted vibrations. This switch from thin steel sheets to aluminium further demonstrates our commitment to quality and innovation.

Simple and enjoyable to use

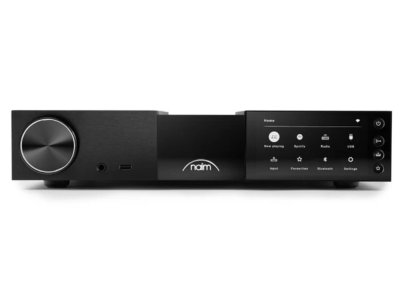

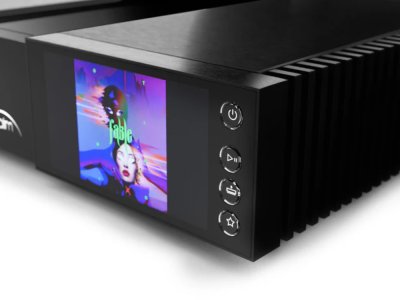

The NSC 222 is designed to provide a seamless and pleasurable experience to its users. You can effortlessly manage it using the Focal & Naim app, which is available on both iOS and Android, or with the help of the Zigbee smart remote control that accompanies the device. The NSC 222 is equipped with a with a backlit volume control and a 5.5" colour screen that displays the currently playing tracks, enhancing your listening experience.

Our Technical Director guided Naim's engineers in developing simple yet elegant circuits, coupled with our DR technology, to ensure a stable and fluid power supply, resulting in exceptional performance. We use the highest quality components and conduct ultra-precise measurements to achieve an uncompromising outcome.

Upgrade your user experience
Discover the new interface available for the 200 & 300 Series to help with the set-up of your products. Find high-quality tutorials to optimise the sound settings, best practice advice and tips.

Specifications :
Technical Specifications
Audio Format :
WAV - up to 32bit/384kHz
FLAC and AIFF - up to 24bit/384Hz
ALAC (Apple Lossless) - up to 24bit/384Hz
MP3 - up to 48kHz, 320kbit (16 bit)
AAC - up to 48kHz, 320kbit (16 bit)
OGG and WMA - up to 48kHz (16 bit)
DSD - 64 and 128Fs
M4A - up to 48kHz, 320kbit (16 bit)
Gapless playback supported on all formats
Frequency response - digital : Digital: 3Hz to 27kHz -3dB
Frequency response - line : Line : 3 Hz to 40 kHz -3 dB
Distortion - Line :
Line: 0.0025% @2.2V input volume at 0dB, 1kHz
(Line: 0.015% @2.2V input volume at 0dB, 20kHz)
Product type : Streaming Preamplifier

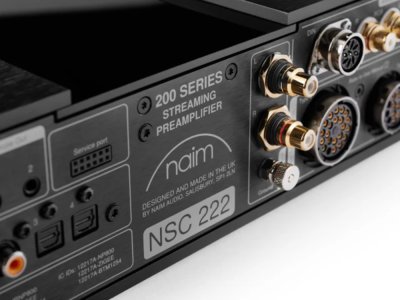

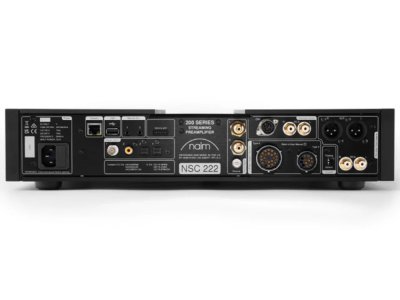

Inputs/Outputs Specifications
Analogue gain :
Pre-amplifier at max volume 15.5dB
Phono stage MM 40dB
Analogue inputs :
1 x moving magnet phono
1 x 8-pin DIN (compatible with 5-pin DIN cables)
1 x RCA stereo pair
Line level inputs (RCA/DIN): Impedance 47k, 2.2V typical, 7.5Vrms Max

Compatible with 5 pin DIN
MM phono: 47k/470pF, 5mV, 23dB overload (75mV max)
Analogue outputs :
1 x XLR pair (7Vrms max)
1 x RCA pair (7Vrms max)
1 x 6.35mm headphone jack (Headphone 1.5W into 16Ω)
Digital level :
2.1V at 0dBFS volume at 0dB
Digital inputs :
2 x Optical TOSLINK (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)
Headphone outputs : 1 x jack 6,35 mm
Other outputs :
Optical 3.5 mm output for synchronized control of compatible product (eg. NAP 250/350)
USB ports : 2x USB Type A socket (front and rear - 1.6A charge)

Phono specifications
Frequency response - Phono : MM: -3dB at 10Hz, RIAA +/-0.1dB
Distortion - Phono : MM: < noise floor

Streaming / Sources
WiFi :
Wi-Fi (802.11 b/g/n/ac) built into heatsink (patent GB2524815B)
Internet Radio Formats : Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS
Multi-Room :
Multiroom streaming (play several streamers in simultaneously) and its "Party Mode" (sync up to six Naim streamers), and control them via the "Focal & Naim" application
Network : Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac), BLE v4.2
Streaming : Apple AirPlay 2, Bluetooth, Chromecast, Internet Radio, Qobuz, Roon Ready, Spotify®Connect, TIDAL, UPnP

Control
App control : Focal & Naim App
Control system : Zigbee® RF4CE
Supported mobile operating system : Android, iOS
Updates : Update your system by wireless connection via the Focal & Naim application
User control product :
5.5" colour display and four buttons for quick access to standby, play/pause, inputs and favourites.
Volume control.

Power Supply
Power consumption in standby mode (deep sleep) : < 0.5W
Power consumption in network standby mode : < 2W
Consumption in normal use : 25 W
Mains power supply : 115V or 230V, 50/60Hz

Design
Depth : 31.75 cm / 12.5 in
Height : 9.15 cm / 3.62 in
Width : 43.2 cm / 8.14 in
Weight : 11 kg / 24.25 lb
