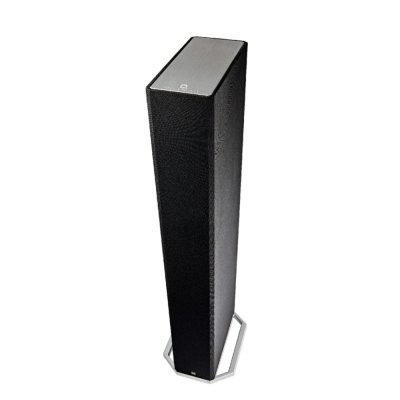

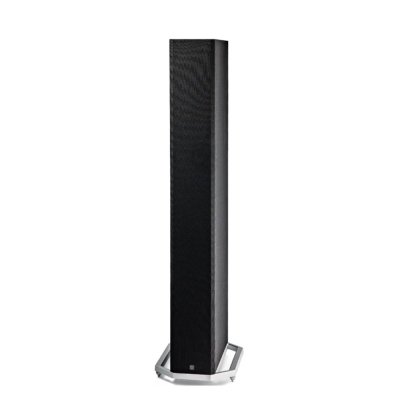

BP9040
High-Performance Tower Speaker with Integrated 8" Powered Subwoofer
High-Performance Bipolar Tower Speaker
Patented Forward-Focused Bipolar Array (FFBP)
Integrated 8 Powered Subwoofer and Dual Bass Radiators
Dolby Atmos Certified & DTS:X Compatible
FLOOR STANDING SPEAKER
Qty Included1
Availability US Internationally
Height without Base39" (99.06 cm)
Width without Base6" (15.24 cm)
Depth without Base13" (33.02 cm)
Weight36 lbs (16.33 kg)
Height with Base40.25" (102.24 cm)
Width with Base13" (33.02 cm)
Depth with Base11" (27.94 cm)
Base MaterialAircraft Grade Aluminum
Leveling MachanismYes
MaterialsAluminum
Front Array Driver Enclosure TypeAcoustically Tuned Vent

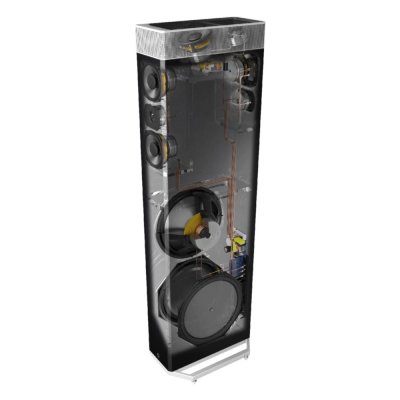

Front Array Driver Complement
(1) 1" (2.54 cm) d (Round) Aluminum Dome - Tweeter
(2) 4.5" (11.43 cm) d (Round) - Midrange
(2) 8" (20.32 cm) d (Round) - Bass Radiator
(1) 8" (20.32 cm) d (Round) - Subwoofer
Rear Array Driver Enclosure TypeAcoustically Tuned Vent
Rear Array Driver Complement
(1) 1" (2.54 cm) d (Round) Aluminum Dome - Tweeter
(1) 4.5" (11.43 cm) d (Round) - Midrange
AUDIO QUALITY
Total Frequency Response22 Hz 40,000 Hz
Nominal Impedance8 ohms
Max Sensitivity (1 watt @ 1 meter)92 dB
INTERNAL AMPLIFIER
Amplifier ClassClass D
