Definitive Technology UIW-RLSII

UIW RLS II
In-Wall Reference Line Source Speaker

Higher impact punch from dual 6.5" cast basket drivers
Deeper bass pours through a pair of 6.5" pressure-coupled Low Bass radiators
Integrated wood enclosure supplies uncolored midrange audio with greater detail
Easy installation with rotating dogleg clamps for non-resonant mounting

SHIPPING CARTONS
Carton 135" (88.9 cm) h x 11" (27.94 cm) w x 9" (22.86 cm) d - 19 lbs (8.62 kg)

IN-WALL AND IN-CEILING
Qty Included1
Availability US
OrientationVertical

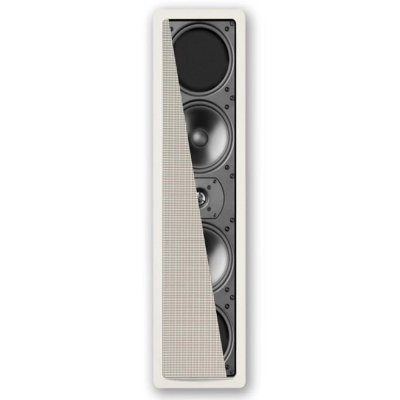

Driver Complement
(1) 1" (2.54 cm) d (Round) - Tweeter
(2) 6.5" (16.51 cm) d (Round) - Mid/Woofer
(2) 6.5" (16.51 cm) d (Round) - Bass Radiator
Depth3.81" (9.68 cm)
Grille Dimensions29.75" (75.57 cm) h x 8.13" (20.65 cm) w

CROSSOVER
Peak Power Handling350 watts
A/V Receiver Crossover SettingsSmall (40 Hz)

INPUTS
Audio Inputs

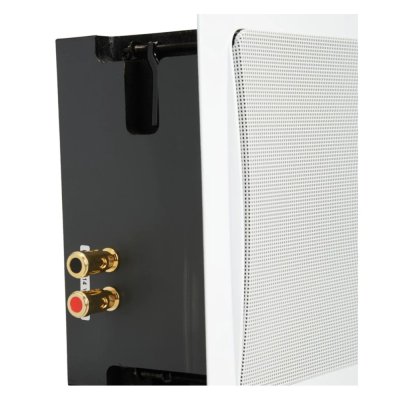

Speaker Inputs(1) Pair of Heavy Duty, Spring Loaded - Gold Plated

AUDIO QUALITY
Total Frequency Response22 Hz 30 Hz
Nominal Impedance8|||| ohms
Max Sensitivity (1 watt @ 1 meter)92 dB

IN-WALL MOUNT
ShapeRectangle
Dimensions28.5" (72.39 cm) h x 7" (17.78 cm) w
