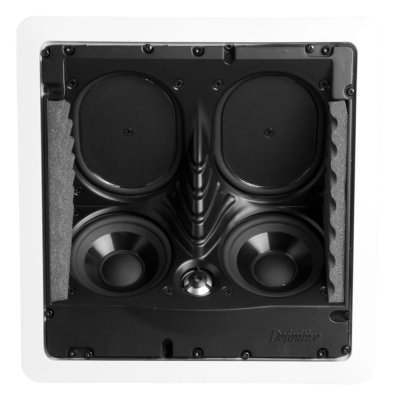

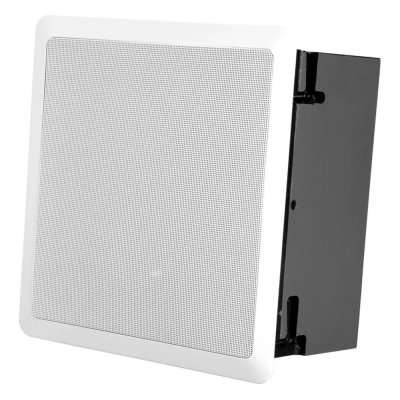

Definitive Technology UIW-RCS III

SKU : UIW-RCS III
Front row audio experiences come to life with patented Wave Launch technology Breathtaking sound dynamics ring true with the pure aluminum dome tweeter Minimal visibility and easy installation with six rotating dogleg clamps and hefty wood screws Integrated wood enclosure creates greater audio performance with uncolored clarity
āļŋ16,900
āļŋ0
āļŋ16,900
āļĢāļēāļ„āļēāļŠāļĄāļēāļŠāļīāļ

āļŋ0
āļĢāļēāļ„āļēāļŠāļĄāļēāļŠāļīāļ
āļŋ0

āļˆāļģāļ™āļ§āļ™
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Front row audio experiences come to life with patented Wave Launch technology
Breathtaking sound dynamics ring true with the pure aluminum dome tweeter
Minimal visibility and easy installation with six rotating dogleg clamps and hefty wood screws
Integrated wood enclosure creates greater audio performance with uncolored clarity

SHIPPING CARTONS
Carton 116" (40.64 cm) h x 12" (30.48 cm) w x 13.25" (33.66 cm) d - 14 lbs (6.35 kg)

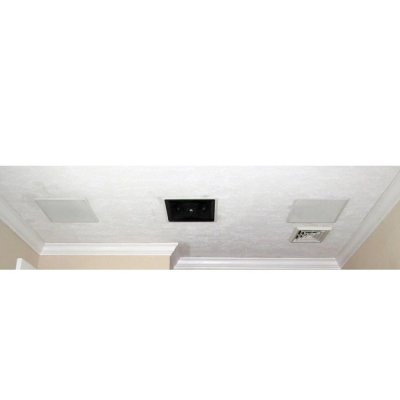

IN-CEILING SPEAKER
Qty Included1
Availability US
Driver Complement
(1) 1" (2.54 cm) d (Round) - Tweeter
(2) 4.5" (11.43 cm) d (Round) - Mid/Woofer
(2) 5.25" (13.34 cm) d (Round) - Bass Radiator
Weight13 lbs (5.9 kg)

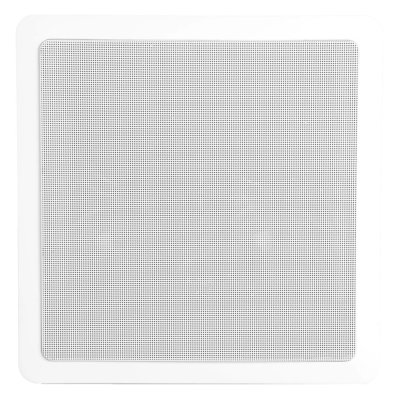

Grille Dimensions11.5" (29.21 cm) h x 11.5" (29.21 cm) w

IN-CEILING MOUNT
ShapeRectangle
Dimensions10.38" (26.37 cm) h x 10.38" (26.37 cm) w

INPUTS
Audio Inputs
EthernetYes
Speaker Inputs(1) Pair of Heavy Duty, Spring Loaded - na

AUDIO QUALITY
Total Frequency Response30 Hz 30 Hz
Nominal Impedance8 ohms
Max Sensitivity (1 watt @ 1 meter)92 dB

CROSSOVER
Peak Power Handling250 watts
A/V Receiver Crossover SettingsSmall (60 Hz)
