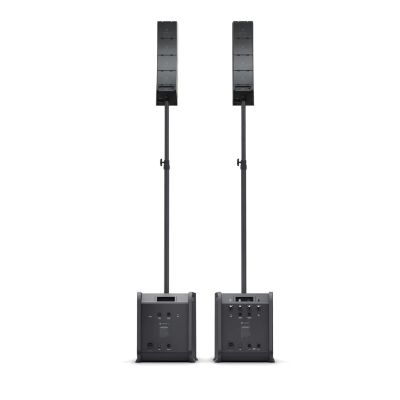

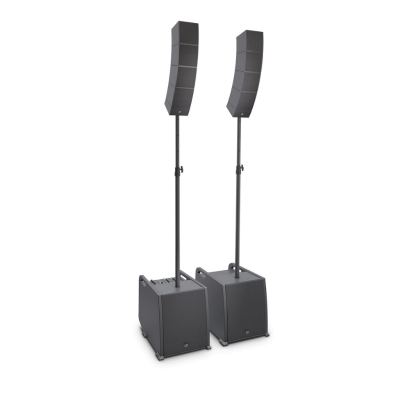

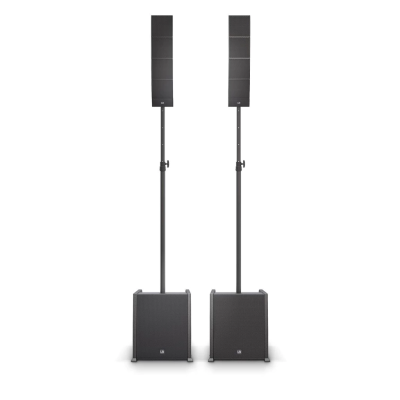

LD SYSTEM Portable Array System Power Set CURV 500 PS

Specifications :

*Product type PA Complete Systems

*System output (RMS): 920 W

*Color Black

*Number of array satellites 8

*Number of Smartlink adapters 2

*Number of subwoofers 2

*Max. SPL (continuous) 128 dB

*Max. SPL (peak) 134 dB

*Frequency response 47 20000 Hz

*Dispersion (H x V) 110° horizontal, vertical (each satellite) 10 °

*RMS Subwoofer: 300 W , Array Satellites: 2 x 160 W, Subwoofer Extension 300 W

*Peak power Subwoofer: 1200 W , Array Satellites: 2 x 640, Subwoofer Extension: 1200 W

*Amplifier Class D

*Protection circuits DSP-based multiband limiter

*Weight 59,1 kg

*Accessories (included) 2 x Distance bar, 2 x Power cable, 2 x Speaker cable CURV 500 CABLE 1 (2.2 m), 5-pin XLR system cable (10 m)

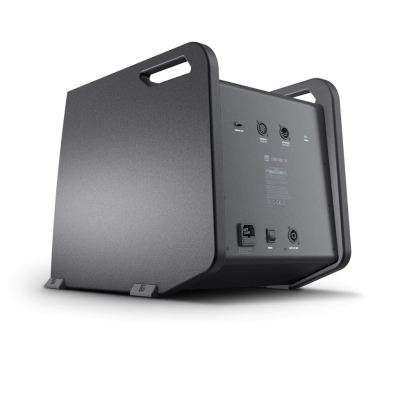

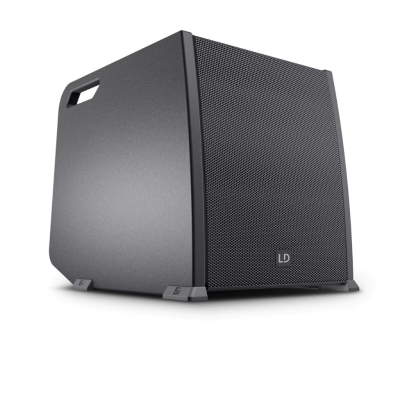

Subwoofer :

*Low/mid driver dimensions 10

*Woofer size 254 mm

*Cabinet construction Bass Reflex

*Cabinet material plywood

*Cabinet surface PA painting

*Dimensions Subwoofer (W x H x D) 325 x 383 x 491 mm

*Subwoofer weight 16.5 kg

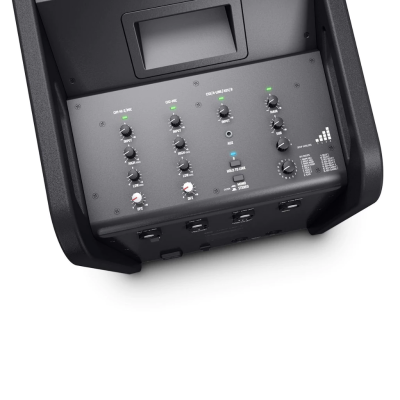

*Subwoofer features 16 DFX Presets, 3 ergonomic handels, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20

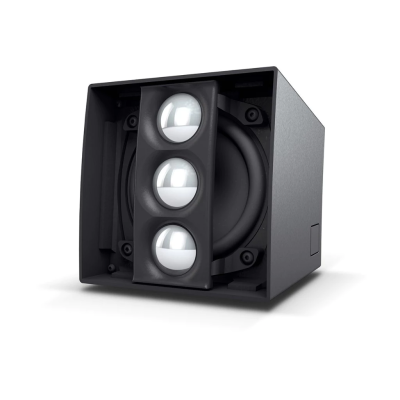

Array Satellites :

*Mid/Hi system MF: 1 x 4 / HF: 3 x 1 with WaveAhead® Technology / 16 ohms

*Array Satellite Features internal crossover, metal grille, WaveAhead® Technology

*Array Satellite Material Die-cast aluminium

*Array Satellite Surface: Powder coated

*Array Satellite Dimensions (W x H x D) 122 x 122 x 122 mm

*Array Satellite Weight 1.7 kg

Smartlink® Adapter :

*Smartlink Adapter Features 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount

*Smartlink Adapter Connectors 1 x Speakon-compatible, 1x Phoenix

*Smartlink Adapter Material Die-cast aluminium

*Smartlink Adapter Surface Powder coated

*Smartlink Adapter Dimensions (W x H x D) 122 x 57 x 122 mm

*Smartlink Adapter Weight 0.6 kg
