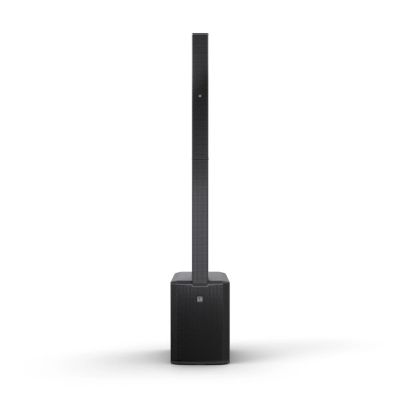

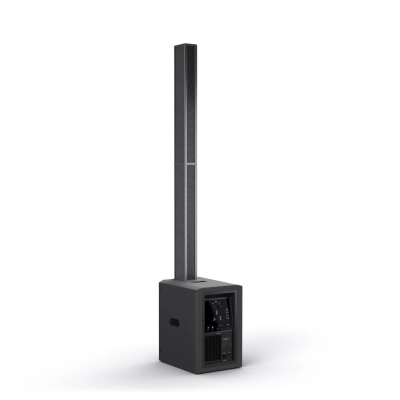

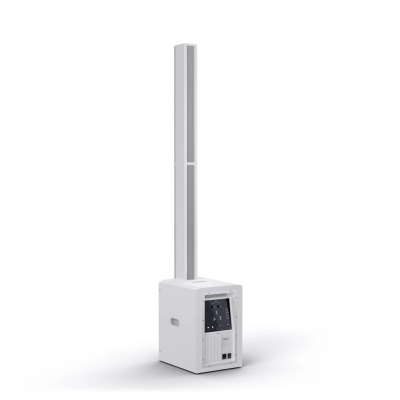

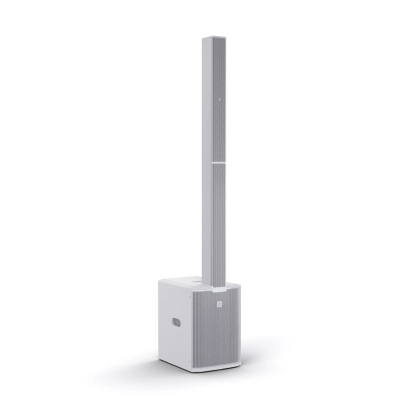

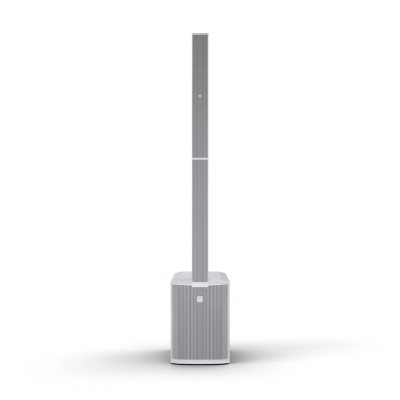

LD Systems MAUI 28 G3 INT ลำโพง Active Column 12×3.5 นิ้ว พร้อมซับ 12 นิ้ว
General :
*Product type PA Complete Systems
*Type Powered
*Color Black
*Max. SPL (Peak) 127 dB
*Frequency response (-10dB) 37 Hz 20000 Hz
*Dispersion (H x V) 120° x 30 °
*Total Height 2052 mm
*Weight 35,4 kg
*Features Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
Subwoofer:
*Woofer dimensions 12
*Woofer dimensions (mm) 305 mm
*Woofer magnet Ferrite
*Woofer brand Custom-made
*Woofer voice coil 3
*Woofer voice coil (mm) 76.2 mm
*Cabinet construction Bass Reflex
*Housing material 15 mm Birch Plywood
*Cabinet surface Polyurea
*Dimensions Subwoofer (W x H x D) 370 x 527 x 472 mm
*Subwoofer weight 22.8 kg
Mid/Hi System :
*Midrange dimensions 12 x 3,5
*Midrange dimensions (mm) 12 x 89 mm
*Midrange magnet Ferrite
*Midrange brand Custom-made
*Midrange voice coil 0.75
*Midrange voice coil 19 mm
*Tweeter dimensions 2 x 1
*Tweeter dimensions (mm) 2 x 25.4 mm
*Tweeter magnet Neodymium
*Tweeter brand Custom-made
*Tweeter voice coil 1
*Tweeter voice coil (mm) 25.4 mm
*Wave Guide CD Waveguide
*Loudspeaker inputs 1
*Speaker input connections Custom-made multipin
*Cabinet construction mid/high Passive Cardioid
*Mid/Hi system cabinet material Aluminium
*Mid/Hi system cabinet surface Powder-coated
*Mid/Hi system width 103 mm
*Mid/Hi system height 1540 mm
*Mid/Hi system depth 135 mm
*Mid/Hi system weight 12.6 kg
Amplifier module (integrated in subwoofer):
*Amplifier Class D
*System output (RMS) 1030 W
*System output (Peak) 2060 W
*Protection circuits DC protection, Multiband limiter, short circuit, thermal protection
*Cooling Convection
*Controls Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
*Indicators Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
*Mains connector IEC power cable (included)
*Operating voltage 100 V AC 120 V AC, 50 60 Hz, 220 V AC 240 V AC, 50-60 Hz
*Fuse T 5AL / 250 V
*Power consumption 400 W
*Ambient temperature (operating) 0 40 °C
*Relative Humidity < 80% (non-condensing)
*Line Inputs 2
*Line Input Connectors Combo XLR / TRS
*Line Outputs 1 x Sub OUT, 2 x THRU
*Line Output Connectors XLR male
*Number of speaker outputs 1
*Loudspeaker Output Connectors Custom-made multipin
*Bluetooth Standard A2DP
*Bluetooth Audio Decoder AAC, SBC
*DSP characteristics
*Bit depth AD/DA converter 24 bit
*Sampling frequency 48 kHz
