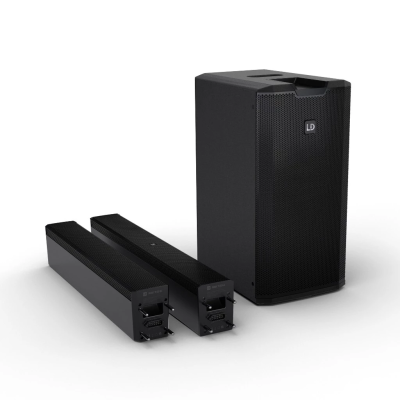

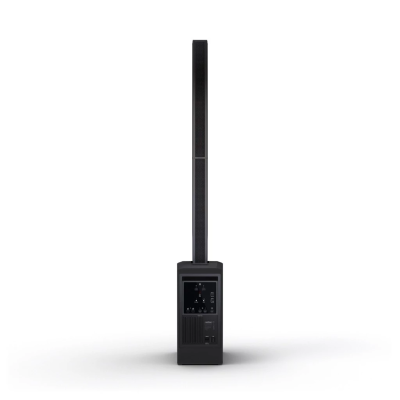

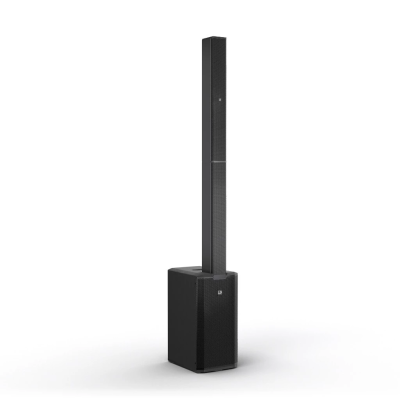

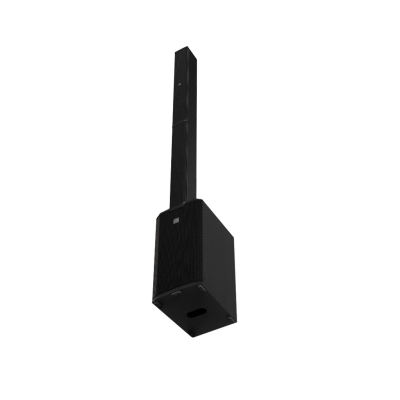

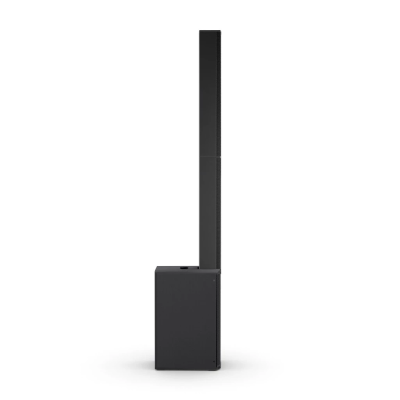

LD Systems MAUI 11 G3 INT ลำโพง Active Column 6×3.5 นิ้ว พร้อมซับ 2×8 นิ้ว

*Product type PA Complete Systems

*Type Powered

*Color Black

*Max. SPL (Peak) 125 dB

*Frequency response (-10dB) 39 Hz 20000 Hz

*Dispersion (H x V) 120° x 30 °

*Total Height 2052 mm*Weight 30,7 kg

*Features Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application

Subwoofer :

*Woofer dimensions 2 x 8

*Woofer dimensions (mm) 2 x 203 mm

*Woofer magnet Ferrite

*Woofer brand Custom-made

*Woofer voice coil 2

*Woofer voice coil (mm) 50.8 mm

*Cabinet construction Bass Reflex

*Housing material 15 mm Birch Plywood

*Cabinet surface Polyurea

*Dimensions Subwoofer (W x H x D) 305 x 607 x 403 mm

*Subwoofer weight 20.5 kg

Mid/Hi System :

*Midrange dimensions 6 x 3.5

*Midrange dimensions (mm) 6 x 89 mm

*Midrange magnet Ferrite

*Midrange brand Custom-made

*Midrange voice coil 0.75

*Midrange voice coil 19 mm

*Tweeter dimensions 2 x 1

*Tweeter dimensions (mm) 2 x 25.4 mm

*Tweeter magnet Neodymium

*Tweeter brand Custom-made

*Tweeter voice coil 1

*Tweeter voice coil (mm) 25.4 mm

*Wave Guide CD Waveguide

*Loudspeaker inputs 1

*Speaker input connections Custom-made multipin

*Cabinet construction mid/high Passive Cardioid

*Mid/Hi system cabinet material Aluminium

*Mid/Hi system cabinet surface Powder-coated

*Mid/Hi system width 103 mm

*Mid/Hi system height 1460 mm

*Mid/Hi system depth 135 mm

*Mid/Hi system weight 10.2 kg

Amplifier module (integrated in subwoofer) :

*Amplifier Class D

*System output (RMS) 730 W

*System output (Peak) 1460 W

*Protection circuits DC protection, Multiband limiter, short circuit, thermal protection

*Cooling Convection

*Controls Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

*Indicators Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode

*Mains connector IEC power cable (included)

*Operating voltage 100 V AC 120 V AC, 50 60 Hz, 220 V AC 240 V AC, 50-60 Hz

*Fuse T 3.15AL / 250 V

*Power consumption 300 W

*Ambient temperature (operating) 0 40 °C

*Relative Humidity < 80% (non-condensing)

*Line Inputs 2

*Line Input Connectors Combo XLR / TRS

*Line Outputs 1 x Sub OUT, 2 x THRU

*Line Output Connectors XLR male

*Number of speaker outputs 1

*Loudspeaker Output Connectors Custom-made multipin

*Bluetooth Standard A2DP

*Bluetooth Audio Decoder AAC, SBC

*DSP characteristics

*Bit depth AD/DA converter 24 bit

*Sampling frequency 48 kHz
