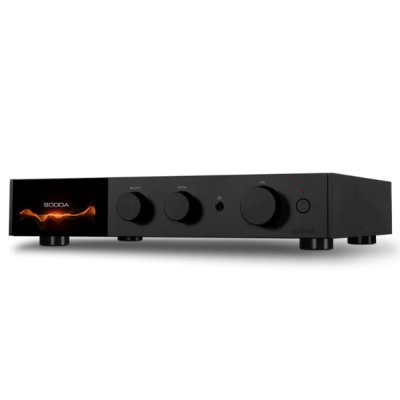

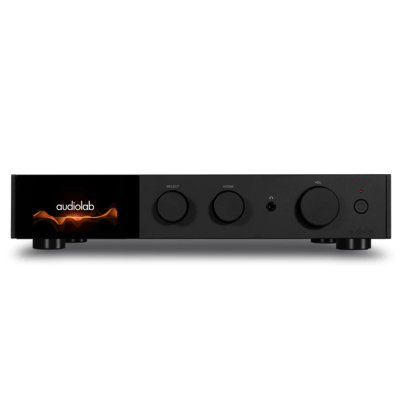

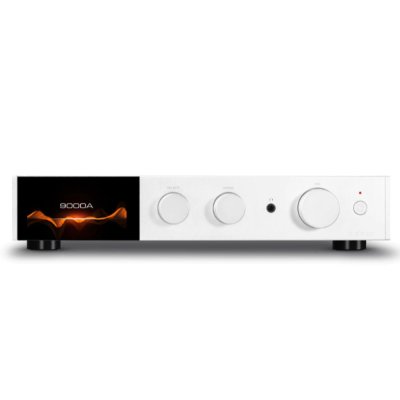

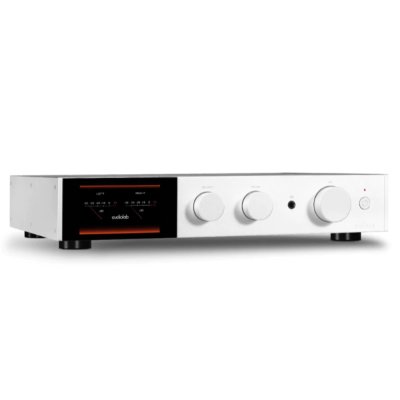

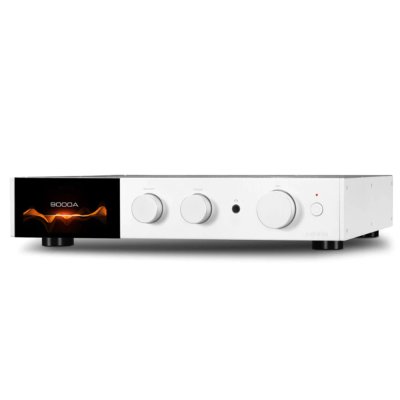

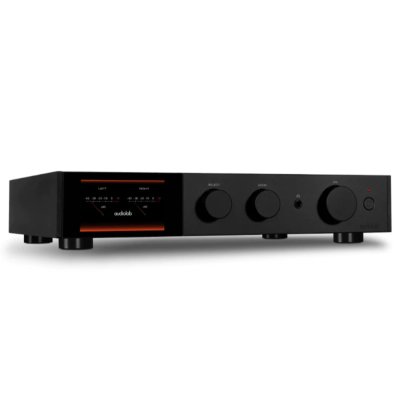

Audiolab 9000A integrated amplifier

Integrated Amplifier
As ever, the 9000A is the centre of the audiolab focus in being the beating heart of any high-performance audio system. Its more powerful, capable and feature-packed than any of the preceding models the most advanced audiolab integrated amplifier yet. Versatility is key to audiolabs integrated amplifier appeal, and the 9000A offers to cater for audiophiles of all creeds. Loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.

Model 9000AGeneral

Description Integrated Amplifier

*Design Philosophy and Cor

e Technology 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB

*ES9038Pro 32-bit DAC

*4.3" (800 x 480mm) Large Size Full View IPS LCD

*Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)

*Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support

*Dedicated High-performance, Low-noise MM Phono Stage

*Dedicated Current-Feedback Headphone AMP

*Integrated / PRE-POWER / PRE Only Modes

USB Upgrade Support :

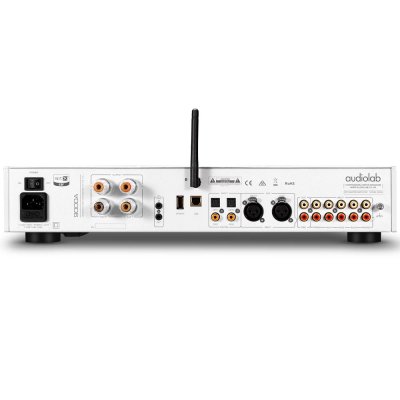

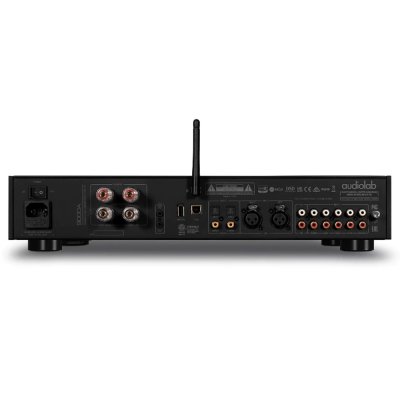

*Inputs 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier,

*2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),

*1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger

*Outputs 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger

*Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz;

*PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier Section :

*Gain (max.) +6dB (Line), +53dB (Phono MM)

*Input Sensitivity 1Vrms (Line, Volume = 0dB);

*2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)

*Input Impedance 10K (Line); 47K // 100pF (Phono MM)

*Total Harmonic Distortion (THD) < 0.0004% (1kHz @ 2V, Volume = 0dB)

*Frequency Response 20Hz-20kHz (+/-0.1dB)

*Output Voltage 2.3V max. (Volume = 0dB)

*Output Impedance 120 ohms

*Signal-to-Noise Ratio > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)

DAC :

*D to A Converter ES9038Pro

*Total Harmonic Distortion (THD) < 0.001% (1kHz @ 0dBFS)

*Output Level (0dBFS, 1kHz) 2.1Vrms

*Max. Sampling Frequency Optical, Coaxial: 192kHz;

*PC USB: PCM768kHz, DSD512

*Signal-to-Noise Ratio (S/N) > 117dB (A-weighted)

Power Amplifier Section :

*Gain +29dB

*Rated Power Output 2 x 100W (8 ohms, THD<1%);

*2 x 160W (4 ohms, THD<1%)

*Frequency Response 20Hz-20kHz (+/-0.3dB)

*Total Harmonic Distortion (THD) <0.002% (1kHz @ 50W / 8 ohms)

*Input Sensitivity 1Vrms

*Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)

*Max. Output Current 15A

Headphone Amplifier:

*Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW )

*Output Impedance 2.35 ohms

*Load Impedance 20-600 ohms

General:

*Standby Power Consumption <0.5W

*Net Weight 9.4kg

*Gross Weight 11.2kg

*Dimensions (mm) (W x H x D) 444 x 342 x 89

*Carton Size (mm) (W x H x D) 514 x 470 x 161

*Finish Black

*Power Requirements 220-240V ~ 50/60Hz;

(depending on region) 100-120V ~ 50/60Hz

*Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.
