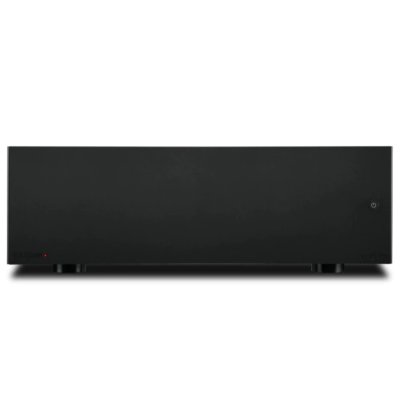

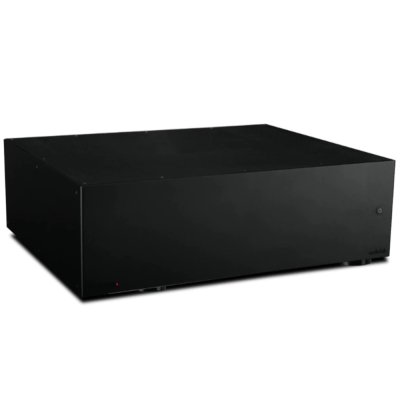

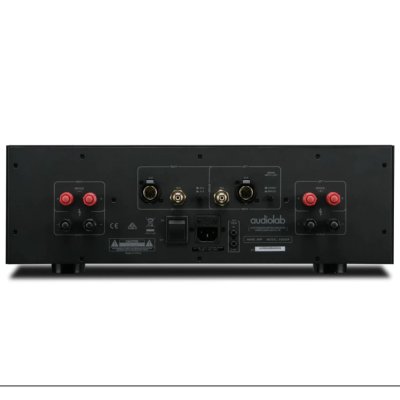

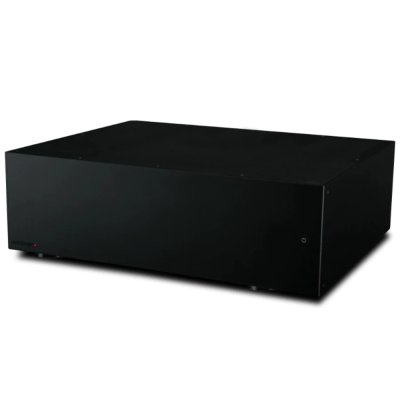

Audiolab 8300XP Power Amplifier

8300XP
The 8300XP is a classic audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior.

Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolabs class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

Model 8300XP
Rate power output :
- 140W RMS (8Ω <1% THD, 1kHZ stereo)
- 230W RMS (4Ω <1% THD, 1kHZ stereo)
- 480W RMS (8Ω <1% THD, 1kHZ bridge)
Gain :
- 29dB @ 1kHz (stereo)
- 36dB @ 1kHz (bridge)
Input sensitivity : 1100mV
Input impedance : 15k (balanced) 10k (unbalanced)
Frequency response :
- -3dB 20Hz - 80kHz
- +/-1dB 20Hz - 30kHz
Total harmonic distortion (THD) : 0.004% (20W, ref. 1kHZ)
Intermodulation distortion (IM) : 0.004% (20W, ref. 7kHz + 60Hz)
Transient inermodulation distortion (TID) : 113dB (A Weighted, ref. 140W)
Signal-to-noise ratio (S/N): 140W / 113dB
Damping factor : 160
Power Requirement :
- 240V ~ 50-60Hz
- 230V ~ 50-60Hz
- 115V ~ 50-60Hz
- 100V ~ 50-60Hz
Dimension (mm) (WxHxD) : 444 x 149 x 367
Carton Size (mm) (WxHxD) : 550 x 260 x 580
Weight : 16Kg (Net) 18.5Kg (Gross)
