Audiolab OMNIA All-in-one Music System with Integrated Amplifer

Omnia
Blurring the lines that generally differentiate hi-fi and lifestyle, Omnia brings all of the pedigree that helps make audiolab electronics the connoisseurs choice. Yet, indulgence in design, material aesthetics, and useability mean it has all of the functionality to make it a sleek, convenient and easy-to-use center-piece, for an uncompromising home audio system.

General Description : Integrated Amplifier
Design Philosophy and Core Technology  :
- 2x50W (8ohm) / 2x75W (4ohm) Class AB
- ES9038Q2M 32-bit DAC
- 4.3" (80x48mm) large size full view IPS LCD
- Built in certified hardware MQA Full decoder (PC USB, Coax/Optical)
- CD playback compatible with CD, CD-R, CD-RW discs
- USB memory device support (MP3/WMA/AAC/WAV)
- DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac)
- Streaming service support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQmusic and more
- Multi-room / multi speaker group support
- Bluetooth 5.0 (aptX/aptX LL) streaming
- Low Noise Moving Magnet Phono stage
- Dedicated Current-Feedback Headphone AMP
- Integrated / PRE-POWER / PRE only Modes
- Android / iOS / Kindle Fire / Windows PC Control Support
- USB firmware upgrade input

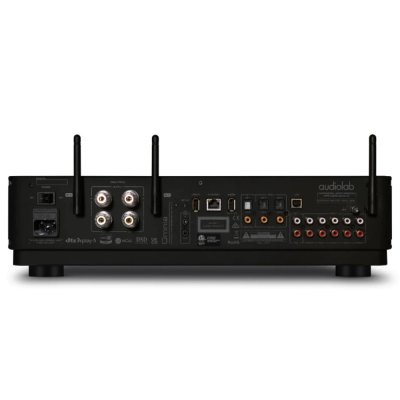

Inputs :
- 3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax),
- 2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B),
- 1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger

Outputs :
-1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger

Sampling Frequency :
- Optical / Coaxial:44.1kHz ---192kHz
- PC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier Section :
Gain :
- +8dB (Line)
- +47dB (Phono MM)
Input Sensitivity :
- 720mV (Line, Volume = 0dB)
- 3.1mV (Phone MM, Volume=0dB)

Input Impedance :
- 10K (Line)
- 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) :
- < 0.0004% (1KHz @ 2V, Volume = 0dB)

Frequency Response :
- 20Hz-20kHz (+/-0.1dB)
- Output Voltage
- 2.3V max. (Volume = 0dB)
Output Impedance : 100 ohm
Signal-to-Noise Ratio :
- >110dB (Line,A-weighted)
- 76dB (Phono MM,A-weighted)
DAC :
- D to A Converte
- ES9038Q2M
Total Harmonic Distortion (THD) : < 0.0006% (1KHz @ 0dBFS)
Output level (0dBFS, 1KHz) : 2.1Vrms
Max. Sampling Frequency :
- Optical, Coaxial: 192KHz
- Ethernet,Wi-Fi: 192KHz
- USB A：48kHz
- PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N) : 114dB (A-weighted)
Power Amplifier Section :
Gain : +29dB
Rated Power Output :
- 2 x 50W (8 ohm, THD < 1%)
- 2 x 75W (4 ohm, THD < 1%)
Frequency Response : 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) : < 0.003% (1kHz @ 40W / 8ohm)
Input Sensitivity : 720mV
Signal-to-Noise Ratio (S/N) : 110dB (A - weighted)
Max. Output Current ; 9A
Headphone Amplifier :
Total Harmonic Distortion (THD) ; < 0.01% (1kHz, 50mW )
Output Impedance : 10ohm
Load impedance : 20-600 ohm

General :
Standby Power Consumption : < 0.5W
Net Weight : 9.1kg
Gross Weight: 11kg
Dimensions (mm) (W x H x D) : 440 x156 x 327
Carton Size (mm) (W x H x D) : 540 x 412 x 210
Finish : Black / Silver
Power Requirements (depending on region) :
- 220-240V ~ 50/ 60Hz
- 100-120V ~ 50/ 60Hz
Standard Accessories : Power Cord, Remote Control,User Manual, Antennas, etc.
