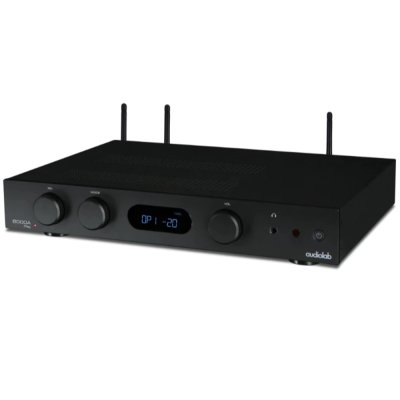

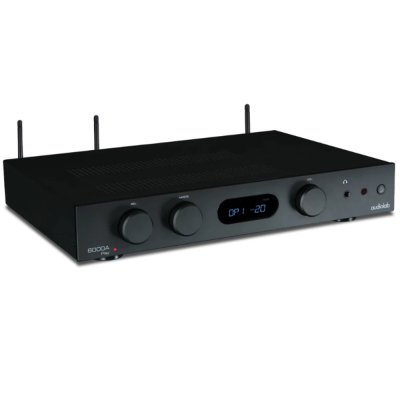

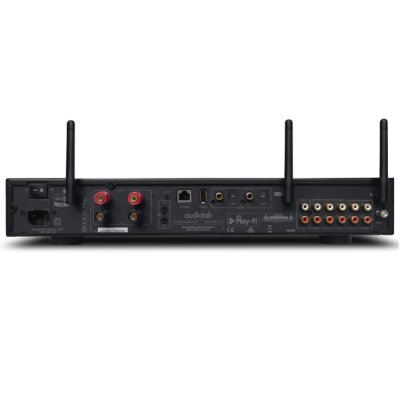

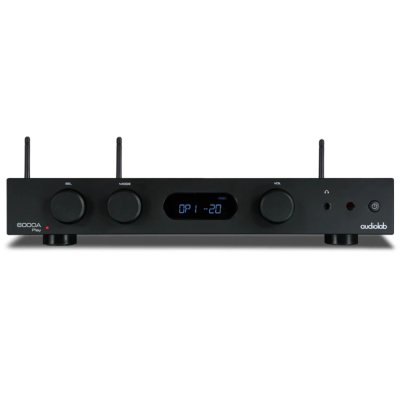

Audiolab 6000A play Integrated Streaming Amplifier

6000A Play
The audiolab 6000A Play, is the latest addition to the globally acclaimed 6000 series.

A combination of the illustrious and class-leading 6000A integrated amplifier with the acclaimed 6000N Play wireless audio streaming player, the audiolab 6000A Play is a richly specified, all-encompassing audio solution.

Adapting to the modern world of music streaming but retaining all of the awarding-winning analogue and digital audio circuitry from the 6000A, the 6000A Play offers almost universal source compatibility.

• IEEE 802.11a/b/g/n/ac Supports global, popular streaming content (Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, Pandora, SoundMachine, Qobuz, QQmusic ) Supports Speaker Groups Supports Android/iOS/Kindle Fire/Windows PC Control
• Analogue Inputs: 3 x AUX , 1x Phono (MM), 1x Power In
• Digital Input: 2 x Coaxial, 2 x Toslink Optical, Bluetooth (aptX/aptX LL)
• Analogue Output: 1x RCA Pre Out
• Gain: +8dB (Line) +55dB (Phono MM)
• Input Sensitivity : 720mV (Line, Volume = 0dB) 3.1mV (Phono MM, Volume=0dB)
• Input Impedance: 10K (Line) 47K//100pF (Phono MM)
• Total Harmonic Distortion (THD): < 0.0004% (1KHz @ 2V, Volume = 0dB)
• Frequency Response: 20Hz-20kHz (+/-0.1dB)
• Output Voltage: 2.3V max. (Volume=0dB)
• Output Impedance: 120 ohm
• Signal-to-Noise Ration (S/N) :

• D To A Converter: ES9018K2M
• Total Harmonic Distortion (THD): < 0.0006% (1KHz @ 0dBFS)
• Output Level (0dBFS, 1KHz): 2.05V
• Max. Sampling Frequency: 192KHz
• Signal-to-noise ratio (S/N): > 112dB (A-weighted)
• Digital Filters: Fast Roll-off , Slow Roll-off , Minimum Phase
• Gain: +29dB
• Rated Max. Power Output: 2 X 50W (8 ohm, THD<1%) 2 X 75W (4 ohm, THD<1%)
• Frequency Response: 20Hz-20kHz (+/-0.3dB)
• Input Sensitivity: 720mV (Volume=0dB)
• Total Harmonic Distortion (THD): < 0.003% (1kHz @ 40W/8ohm)
• Signal-to-Noise ratio (S/N): > 110dB (A-weighted)
• Max. Output Current: 9A
• Total Harmonic Distortion (THD): < 0.01% (1kHz, 10mW into 20ohm)
• Output Impedance: 2.35 ohm
• Load impedance: 20-600 ohm
• Standby Power Consumption: < 0.5W
• Power Requirements (depending on region): 220-240V ~ 50 - 60Hz 100-120V ~ 50 - 60Hz
• Dimensions (mm) (W x H x D): 445 x 80 x 330mm including feet, terminals and controls
• Carton Size (mm) (W x H x D): 512 x 467 x 155
• Weight: 7.9kg (Net) 10kg (Gross)
• Finish : Black/Silver
