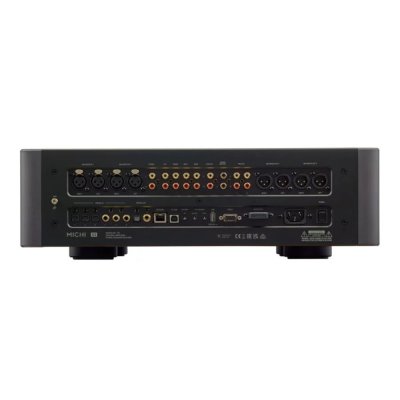

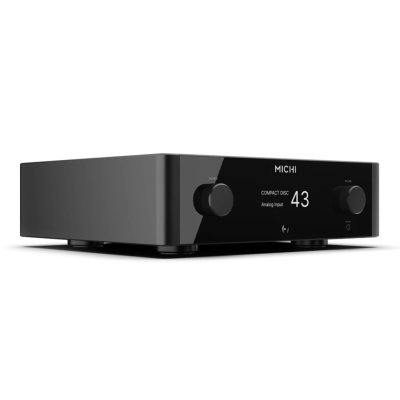

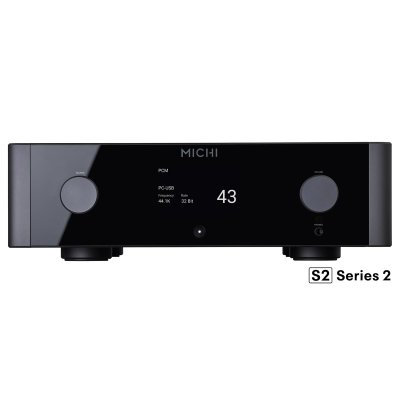

MICHI P5 S2 (Series 2) Stereo Preamplifier

*Power requirements: 120V, 60H

*Power requirements: 120V, 60Hz

*Power consumption: 40W

*Standby power consumption: Normal: <0.5W, Network Wakeup: <2W

*Btu rating (4Ω, 1/8th power): 87 BTU/h

*Total harmonic distortion (thd): (20Hz20kHz) <0.002%

*Frequency response: Line Level Inputs: 10Hz - 100kHz (±0.3dB) Digital Inputs: 20Hz - 20kHz (±0.3dB) Phono Input: 20Hz - 20kHz (±0.3dB)

*Frequency response: Line Level Inputs: 10Hz - 100kHz (±0.3dB) Digital Inputs: 20Hz - 20kHz (±0.3dB) Phono Input: 20Hz - 20kHz (±0.3dB)*S/n ratio (ihf "a" weighted): Line Level Inputs: 116dB Digital Inputs: 100dB Phono Input: 80dB

*Intermodulation distortion (60hz:7khz, 4:1): <0.002%

*Input sensitivity: Line Level Inputs (RCA): 160mV, Line Level Inputs (XLR): 250mV, Phono Input (MM): 2.5mV, Phono Input (MC): 250uV, Digital Inputs: 0dBFs

*Input impedance: Line Level Inputs (RCA): 47kΩ, Line Level Inputs (XLR): 100kΩ, Phono Input (MM): 47kΩ, Phono Input (MC): 100Ω, Digital Inputs: 75Ω

*Input overload: Line Level Inputs (RCA): 12V, Line Level Inputs (XLR): 12V, Phono Input (MM): 199mV, Phono Input (MC): 22mV

*Output level: Unbalanced (RCA): 1V, Balanced (XLR): 2V

*Output impedance: Unbalanced (RCA): 470Ω, Balanced (XLR): 100Ω

*Channel separation: Line Level Inputs: >85dB, Phono Input: >55dB

*Tone controls: ±10dB at 100Hz / 10kHz

*Coax/optical digital input signals: LPCM (Up to 24-bit/192kHz)

*Pc-usb: USB Audio Class 1 (up to 24-bit/96kHz), USB Audio Class 2 (up to 32-bit/384kHz)*,

*Driver Installation Required, DSD and DoP Support, MQA and MQA Studio Support, Roon Tested

*Dimensions (w × h × d): 485 × 150 × 452mm, 19" × 6" × 17.75"

*Front panel height: 132mm (5.25")

*Net weight: 22.9kg (50.5lbs.)
