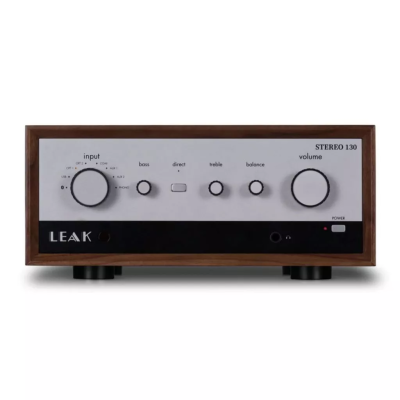

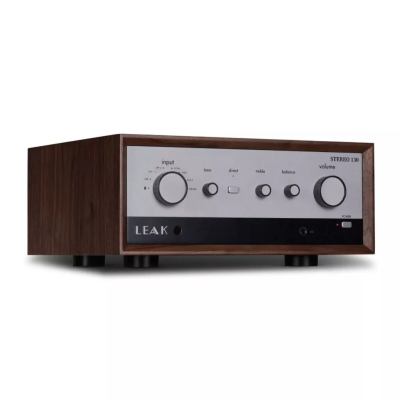

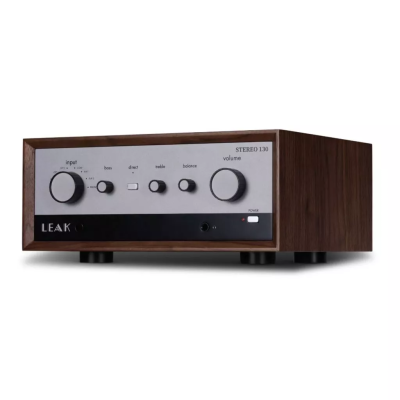

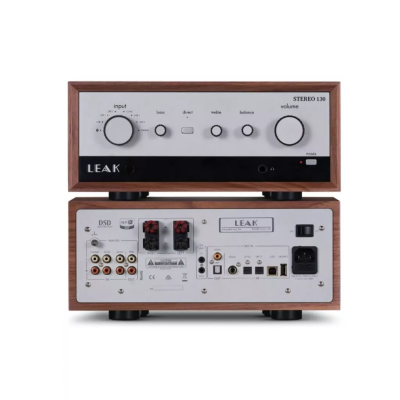

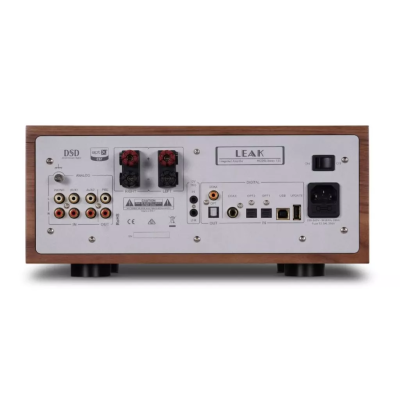

LEAK STEREO 130 Integrated Amplifier

STEREO 130

SPECIFICATION :

*D/A Converter ESS Sabre32 Reference ES9018K2M

*Input Sampling Rates Optical, Coaxial: 44.1kHz~192kHz; USB: 44.1kHz~384kHz (PCM)/DSD64, DSD128, DSD256

*Rated Output Power 2 x 45W (8ohm)/2x65W (4ohm)

*Total Harmonic Distortion < 0.005% (30W, 8ohm)

*Frequency Response 20Hz-20kHz (+/-0.5dB)

*Input Sensitivity 480mV (RCA AUX IN); 4.1mV (phono MM)

*Input Impedance 10Kohm (AUX) ; 47Kohm //100pF (phono MM)

*Signal to Noise Ratio (S/N) 108dB (A-weighted, ref.45W)

*Pre Output Level 4

*Pre Output Total Harmonic Distortion (THD) < 0.003%

*Pre Output Signal to Noise (S/N) >110dB (A-weighted)

*Profile A2DP

*Codec aptX (priority), SBC

*USB Input 1 x USB (B-type)

*Digital Audio Inputs 2 x Optical TOSlink ,1 x RCA COAX

*Digital Audio Outputs 1 x Optical TOSlink ,1 x RCA COAX

*Analogue Inputs 2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM)

*Analogue Output 1 x RCA (PRE OUT)

*Power Requirement (Depends on your area) 220-240V ~ 50/60Hz 100-120V ~ 50/60Hz

*Dimensions W x H x D (mm) 302 x 118 x 270 (Metal) 326 x 146 x 276 (Wood)

*Carton Size W x H x D (mm) 475 x 248 x 450

*Net Weight 7.02kg (Silver) 8.30kg (Walnut)

*Gross Weight 9.30kg (Silver) 10.60kg (Walnut)

*Finish Silver/Walnut
