FURUTECH FT-210 - pure copper conductors (10 pcs./ set )
SKU : FT-210 - (10 pcs./ set )
ขายแล้ว 0 ชิ้น
฿1,750
จำนวน
คำอธิบายสินค้าแบบย่อ

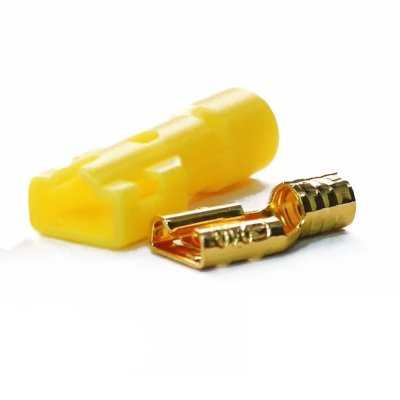

•The Furutech FT-210 Fully Insulated Female Disconnect Terminal
using 24k Gold-plated α (Alpha) pure copper conductor.
•Suitable TAB Size: 0.250 X 0.032 “ / 6.35 X 0.8 mm.
•Suitable Wire Size: FT-210---5.5 sq. mm max. (12~10 AWG)
แบรนด์: FURUTECH
หมวดหมู่:
ไม่ทราบหมวดหมู่
รายละเอียดสินค้า
- The Furutech FT-210 Fully Insulated Female Disconnect Terminal using 24k Gold-plated α (Alpha) pure copper conductor.
- Suitable TAB Size: 0.250 X 0.032 / 6.35 X 0.8 mm.
- Suitable Wire Size: FT-210---5.5 sq. mm max. (12~10 AWG)
- Insulated Tube: RoHS Compliant high mechanical strength PolySulfone resin (Yellow).
- The extraction force: 5.0 kgf (49N) approx
- Rhodium plated version by request.
- Package: 10 pcs / set.
Furutech recommends using FT-210 disconnect terminals with FT-860 wire-wound binding posts and any other application that requires the finest conductor material
Note* If the extraction force weakens to restore the gripping force, simply use nipper pliers to press both sides of terminal
