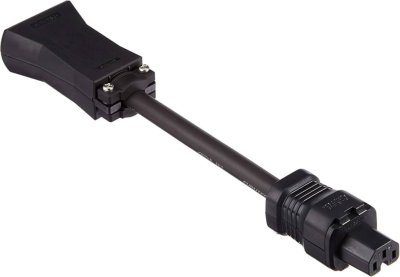

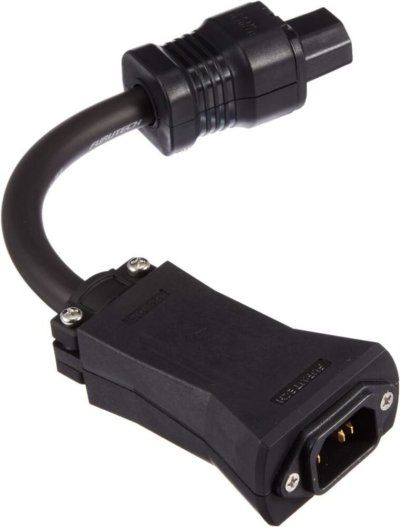

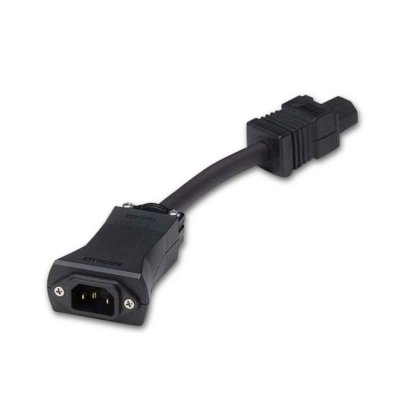

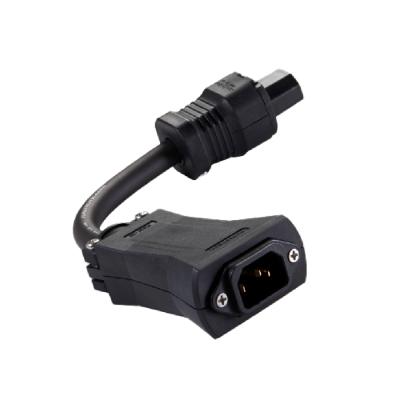

FURUTECH Flow-15 Plus EMI Filter

FEATURES :
・The body of the Flow-15 combines two active materials: Nano-sized ceramic particles and powdered carbon plus Nylon and fiberglass to form an extremely effective mechanically and electrically damped body
・Use between power cables and power distributors or power cables and components
・Eliminates radiated AC noise
・Fitted with 24k gold-plated α (Alpha) nonmagnetic FI-15 Plus G connector
・AC-1001G EMI-filtering IEC features 24k gold-plated α (Alpha) nonmagnetic copper alloy conductors plus
・A parallel circuit with an in-line coil and capacitor that reduces noise at 100KHz by 8dB and at 500KHz by 14 dB and at 10MHz by more than 30dB
・Floating Field Damper (Earth/Ground Jumper System) with US Patent No.: 6,669,491
・Patent-pending metal cable clamp improves grip and reduces mechanically and electrically induced distortion
・α (Alpha) conductor shield for protection against radiated noise
・RoHS-compliant flexible PVC sheath improves vibration isolation
・Special high-grade PE Insulation contributes to reduced capacitance

The AC-1001G EMI Filtering IEC Input

The parallel circuit with in-line coil and capacitor reduces noise at 100 KHz by 8dB and at 500 KHz by 14dB and at 10MHz by more than 30dB

SPECIFICATIONS :
The AC-1001G EMI Filtering IEC Input
・24k gold-plated α (Alpha) nonmagnetic copper alloy conductors
・Outer cover： Chrome-plated steel-plate
・Inner cover： Nylon fiberglass
・Inner Box： Nylon fiberglass
・Inner parts held in place with Piezo Epoxy
・Rating： AC 115V/250V 10A 50/60Hz

• Twisted 3 core high end performance power cable
• Red- 37 strands of 0.26mm silver-plated α (Alpha) OFC Conductor
• White -37 strands of 0.26mm silver-plated α (Alpha)OFC Conductor
• Green- 37 strands of 0.26mm α (Alpha) OFC Conductor
• Insulation: Polyethylene (Red/ White / Green) 3.5mm diameter
• Fillers: Cotton with paper tape wrap
• Sheath: RoHS-compliant Flexible PVC (Burgundy) approx. 10mm diameter
