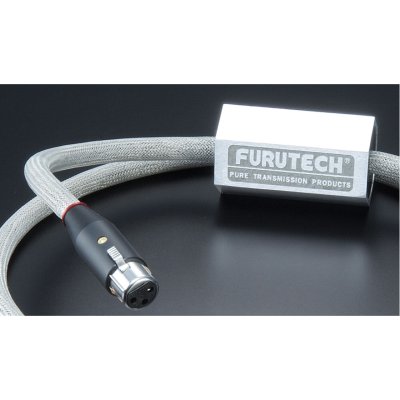

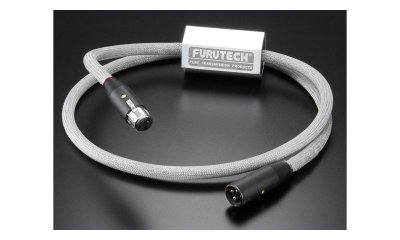

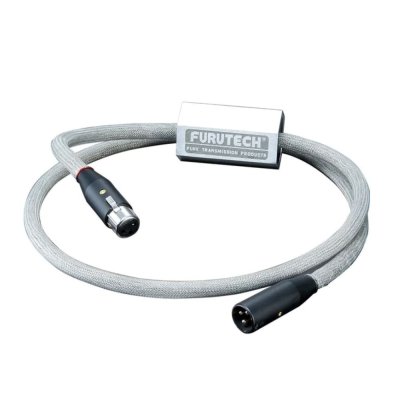

FURUTECH Digi Reference III（XLR） - High End performance Digital Cablet 1.2M

RATING :
1.2M
(Type: Hyper-Balanced Interconnects)

• Double-shielded α (Alpha)-OCC Conductors eliminate radiated noise
• Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
• High performance beautifully engineered XLR connectors [FP-601M (R)] and [FP-602F (R)]
• 　transfer signal without reflections for extremely low jitter performance
• Pins high-contact luxuriously-finished nonmagnetic rhodium-plated phosphor bronze for stable
• 　Furutech Pure Transmission signal
• Additionally shielded with special fiberglass and 0.12 mm α (Alpha) conductor braid
• Insulated with air-foamed HDPE reducing capacitance and damping vibration
• Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which
• 　music develops more fully without artificial upper-frequency presence region glare.
• GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range,
• 　better defining the original recordings venue. Natural, unforced detail reveals nuance and energy
• 　for an engaging musical experience.

α (Alpha) Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutechs α (Alpha) Cryogenic and Demagnetizing Process

• Construction and Materials
• 30-strand α (Alpha)-OCC Conductor ・ 0.18mm , 1.14mm diameter
• Insulation: 30％ air-foamed HDPE (Red/White) 2.60mm diameter
• Cable Lay: Two twisted cores with cotton yarn
• Cable Wrap: Non-woven fabric wrap approx. 5.8mm diameter
• Shield-1: 0.12mm braided α (Alpha) Conductor braid density: 80％ UP x 6.3mm diameter
• Sheath: Two layers flexible PVC (Dark Brown) 8.0mm diameter
• Shield-2: Special fiberglass and copper wire stranded braid
• Jacket: Nylon yarn braid approx. 10.5mm diameter.
• Shield-3: Special EMI and noise-absorbent Formula GC-303 module
• Connectors: Male [FP-601 M (R)] and female [FP-602 F (R)]

• Max. Conductor Resistance 26.4 Ω／km JISC3005 6 20
• Min. Insulation Resistance 1000 MΩ-km JISC3005 9.1 20
• Dielectric Strength AC. 500 V／1 min. JISC3005 8
• Electrostatic Capacitance Approx 42 PF／m at 1 KHz
• Characteristic Impedance Approx 120 Ω at 100 KHz
