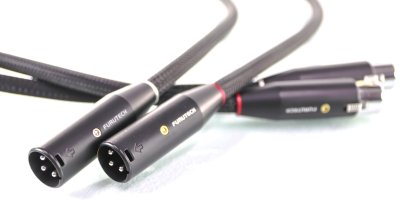

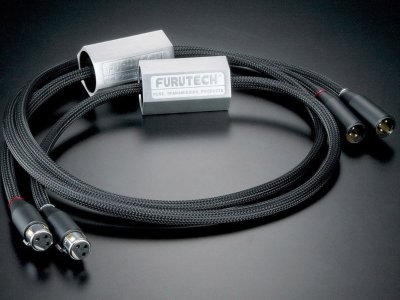

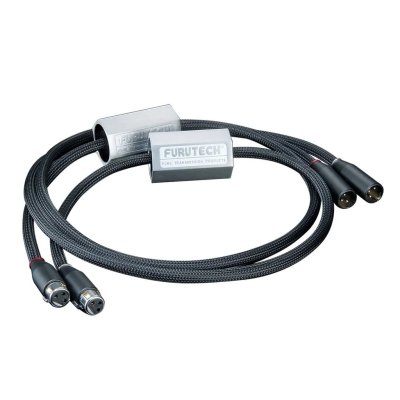

FURUTECH Audio Reference III XLR - High End performance Interconnect Cable / 1.2m

RATING :
Type: Hyper-Balanced Interconnects
Connectors: FP-601 M(R) and FP-602 F(R) XLR connector

• Double-shielded α (Alpha)-OCC Conductors eliminate radiated noise
• Formula GC-303 Antimagnetic EMI-Absorbent Modules surround each cable
• High performance beautifully engineered rhodium plated XLR [FP-601M/602F (R)] connectors
• XLR pins [FP-601M (R)/602F (R)] high-contact luxuriously-finished nonmagnetic rhodium-plated phosphor bronze for stable Furutech Pure Transmission signal
• Shield 1 0.12 mm α (Alpha) conductor wire braid
• Shield 2 special EMI-absorbent Formula GC-303 Modules for superior noise isolation
• Insulated with air-foamed HDPE reducing capacitance and damping vibration
• Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency presence region glare.
• GC-303 allows a deeper, tighter bass to form a solid foundation for the rest of the frequency range, better defining the original recordings venue. Natural, unforced detail reveals nuance and energy for an engaging musical experience.

α (Alpha) Conductor Is Composed Of Fine PCOCC Wire Strands Treated With Furutechs α (Alpha) Cryogenic and Demagnetizing Process

• Specifications: Construction and Materials
• 30-strand α (Alpha)OCC Conductor・0.18mm, 1.14mm diameter
• Insulation: 30％ air-foamed HDPE (Red/White) 2.60mm diameter
• Cable Lay: Two twisted cores with cotton yarn
• Cable Wrap: Non-woven fabric wrap ~5.8mm diameter
• Shield-1: 0.12mm braided α (Alpha) Conductor・Braid density: 80％ UP x 6.3mm diameter
• Sheath: Two layers flexible PVC (Dark Brown) 8.0mm diameter
• Shield-2: Special EMI- and noise-absorbent Formula GC-303 module
• Jacket: Nylon yarn braid. ~10.5mm diameter

• Max. Conductor Resistance 26.4 Ω／km JISC3005 6 20
• Min. Insulation Resistance 1000 MΩkm JISC3005 9.1 20
• Dielectric Strength 　　　　 AC. 500 V／1 min JISC3005 8
• Electrostatic Capacitance Approx 42 PF／m at 1 KHz
• Characteristic Impedance Approx 120 Ω at 100 MHz
