FURUTECH DAS-4.1 Top-of-the-line bulk balanced cable (30m/R)

RATING :
Alpha OCC-DUCC
DAS-4.1
Balanced Interconnect Bulk Cable (30m/98.4ft/Reel)

FEATURES :
D.U.C.C. (Dia Ultra Crystallized Copper)
α (Alpha) OCC DUCC is constructed using a combination of DUCC Ultra Crystallized High Purity Copper and Furutechs world famous Pure Transmission α (Alpha)-OCC.

Furutech DUCC Ultra Crystallized High Purity Copper -- supplied and regulated with strict quality and supply control by Mitsubishi Materials Industries -- is one of the best conductors Furutech engineers have found for signal transmission.

Mitsubishi process this extremely pure oxygen-free copper with new technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries resulting in a tremendously efficient conductor. Furutech combines DUCC with Furutechs world famous Pure Transmission α-OCC and treats this optimized dual conductor configuration with Furutechs Alpha Super Cryogenic and Demagnetizing process to take purity and conductivity a significant step further.

Specification :

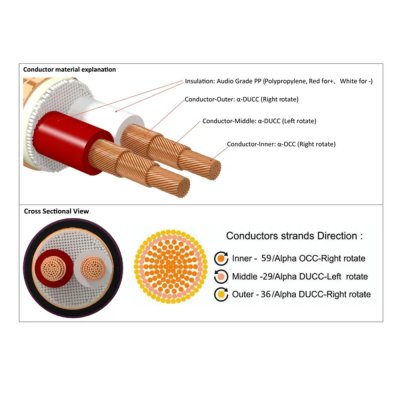

Conductor
Material Alpha-OCC + α-DUCC (7N Class)
Construction（pcs／mm）
Inner 59/0.13α-OCC (Right rotate)
Middle 29/0.13α-OCC (Left rotate)
Outer 36/0.13α-DUCC (Right rotate)
Diameter （mm）1.67 Approx.
Size 15AWG / 1.65 Sq.mm

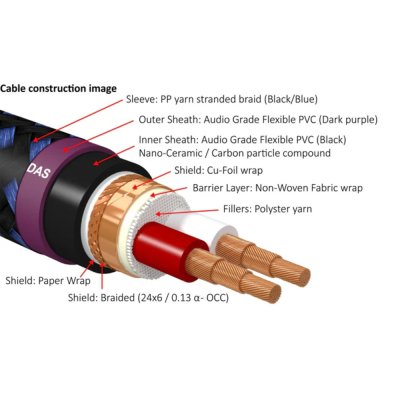

Shield Material :
Cu-Foil + Braided OFC (24×6 / 0.13 α- OCC) +Paper wrap

Inner Sheath Material :
Audio Grade Flexible PVC (Black) Nano-Ceramic / Carbon particle compound Diameter （mm) 7.80

Outer Sheath material : Audio Grade Flexible PVC (Dark purple) Nom. Thickness（mm）0.7 Diameter （mm）9.2 Approx.

Outer Sleeve Material :
Nylon yarn stranded braid(Black/Silver)
Overall Diameter（mm）10.0 Approx.

Insulation :
Inner Material Audio Grade PP (Polypropylene, Red for+、White for -)Mom. Thickness （mm
Mom. Thickness （mm）0.7 Approx Diameter （mm）2.6 Approx..
Twisting Method 2 Cores Twisted Together
