FURUTECH FP-3TS762 POWER SUPPLY CABLE (40M/Reel)

RATING :
10 AWG α-Conductor(4.93 Sg.mm)

FEATURES :
α(Alpha)-μOFC Conductor is the fine μOFC conductor wire strands treated with the α(Alpha) process.

Engineer's listening notes: Punchy, tight, deep bass, excellent transient and power response

SPECIFICATIONS :

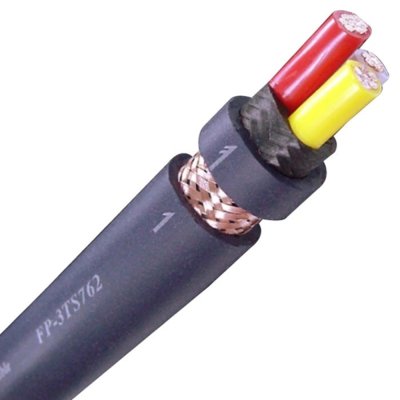

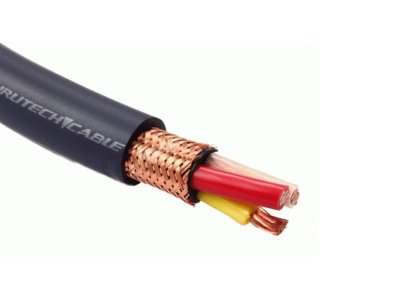

・Conductor ：α(Alpha)-μOFC Conductor (7X35/0.16mm) (10 AWG) / (4.93 sq.mm)
・Insulation:PE(Red、Natural、Yellow) Dia.:5.2mm　Red=Live、Yellow=Neutral、Clear=Earth.
・Twisting:3 Cores Twisted Together
・Inner Sheath:Flexible PVC (Black)
・Shield:0.12mm α(Alpha) conductor wire Braid
・Sheath:Flexible PVC (Dark Purple)
・Overall Diameter: 15.5 mm

・ Electrical Properties / Test Method
Max. Conductor Resistance: 2.4 Ω／km, JISC3005 6 20
Min. Insulation Resistance: 2500 MΩkm, JISC3005 9.1 20
Dielectric Strength: AC 3000 V／1 min., JISC3005 8
