B&W CT7.4 LCRS (Black) Home Cinema Systems

CT700 Series Total integration

The CT700 flagship combines clarity and power, thanks to a Nautilus tube-loaded tweeter and dedicated mid and bass drivers. Designed for music or the front channels of a Custom Theater installation, it slots easily into cabinetry.

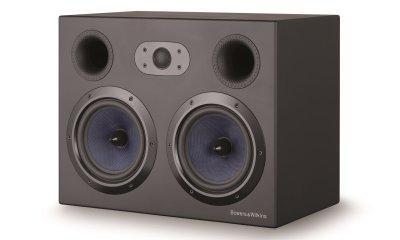

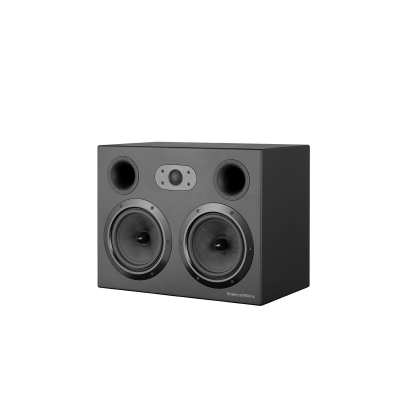

CT7.4 LCRS
Twin 15cm mid/bass units bring on the CT7.4 LCRS's power, while the famous Nautilus tube-loading delivers pure, detailed treble, making this an ideal speaker for use in music or multichannel installations.

07 B CT800 additional img 5

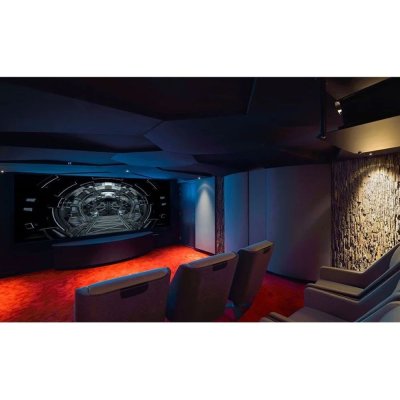

Experience home cinema as it was meant to be heard with B&Ws Custom Theatre 700 Series. Our new range of dedicated custom theatre loudspeakers brings B&W 700 Series technology and craftsmanship to your home cinema set-up at a cost-effective mid-range price.

The three models in the range integrate seamlessly with home theatre cabinetry and can each be positioned as left, centre, right or surround speakers. Each speaker uses high sensitivity Nautilus tube-loaded tweeters designed specifically for the reproduction of movie soundtracks along with first-order tweeter crossover filters for minimal signal degradation. Combined with our unique Aramid Fibre drive units, the result is extraordinarily life-like,
dynamic movie sound quality The mid-point in the range, the CT7.4 LCRS offers superior performance at lower frequencies through its two 6 inch Aramid Fibre CT700 series bass/midrange drive units.

• Nautilus tube loaded tweeter
• Aramid Fibre bass/midrange cone Flowport
• Magnetically attached grille

Description
2-way closed-box system

Drive units

• 1x ø25mm (1 in) cloth dome high-frequency
• 2x ø165mm (6.5 in) woven Aramid Fibre cone bass/midrange

Frequency range -6dB at 43Hz and 28kHz

Frequency response Frequency response 49Hz 22kHz ±3dB on reference axis

Dispersion:

• Within 2dB of reference response
• Horizontal: over 60º arc
• Vertical: over 10º arc

Sensitivity Sensitivity 94dB spl (2.83V, 1m)

Harmonic distortion:

• 2nd and 3rd harmonics (90dB, 1m)
• <1% 90Hz 20kHz

Nominal :

• impedance 8 (minimum 4)
• Crossover frequency 4kHz
• Recommended amplifier power
• 50W 150W into 8 on unclipped programme

Max. recommended cable impedance 0.1

Dimensions:

• Height: 343mm (13.5 in)
• Width: 444mm (17.5 in)
• Depth: 265mm (10.5 in)
• Depth with grille: 288mm (11.3 in)

Net weight     15.75kg ( 34.7lb)
