MOCHA JY-M2 AC3 DTS 5.1 DIGITAL AUDIO DECODER

First, you are apprecited for choosing MOCHA JY-M2 digital audio frequency decoder. This fashionable decoder is capable of DTS and Dlby Digital decoding and is able to process Dolby Pro Logic II by simulating any double-track sound in 5.1 track ambient soundscape. It is equiped with various ways of audio input, which means it can function in harmony with different kinds of entertainment facilities, for example, High-Fidelity DVD player, CD，ＰＳ／２，XBOX360，soundcard of computers. It gives a fine representation of the amazing quality of digital ambient sound in films, so that you would feel that you are personally on the scene when you are watching DVD, listeing to music or play PC games.

Attention
1.It should be placed in dryness and shade. Exposure to sunshine should be avoided. More space is needed for releasing the heat.
2. It should be placed away from interfering appliances, for example, transformer, electromotor, in order to avoid interference and noise.
3.Dont pile up sundries on it.
4.Make sure all the connections are ready before you turn on the switch.
5.Turn off the switch after work. Take off the plug for a long-term idle status.
6.Please contact the appointed provider inn case there was any malfunction. You are warned not to open the lid and amend it by yourself.
7.Please strictly follow the on-off order to avoid the shock caused by false manipulation.
On order: sound source decoder amplifier
Off order: amplifier decoder sound source

features of the decoder

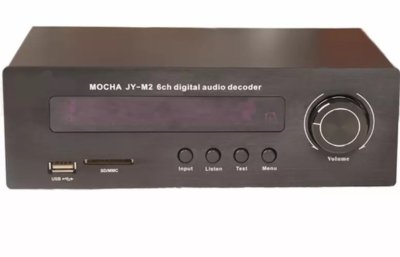

It is armed with alnico panel of high-class sandblast art, and with black Acrylic lens with VFD screen vision, which results in easy manipulation and nice look.

Nine DSP effects are internalized, with pattern selection of big and small loudspeakers, direct pattern selection of 2.1 or 5.1, test of noise, correct and convininet location of different sound boxes.

It is under multi-functional remote control.

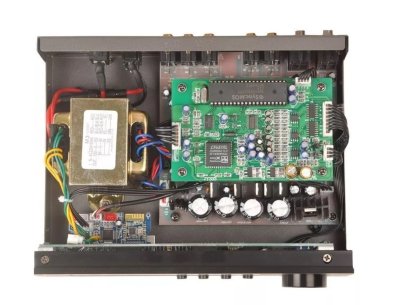

It applies American Crystals first-class double-decoding CMOS chip, 24 bit/96KHZ CMOS chip, which ensures the first-class sound quality and stable performance.

It applies Japan Mitsubishis super digital volume-control IC to adjust the volume of the main track. Volume of different tracks can be individually controlled.

It provides auto-recognition.

There is one channel of optical signal input, two channels of coaxial signal input, two channels of RCA simulation signals input.

There is an output interface: six-channel RCA interface.

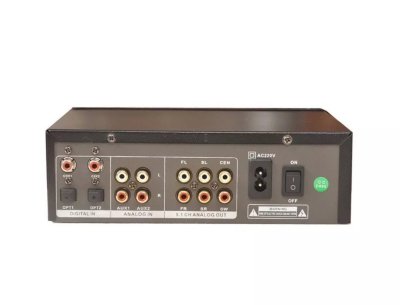

introduction of the backboard interface

introduction of the interface
1、OPTCAIL：Input interface: digital optical fibre
2、COAXIAL 1：Interface 1: Digital coaxial input.
3、COAXIAL 2：Interface 2: Digital coaxial input.
4、AUX1：Input interface 1: simulation of stereo sound.
5、AUX2：Input interface 2: simulation of stereo sound.
6、5.1 CH OUTPUT。
7、electrical source wire.
8、Power switch (for the decoder)

Technical Parameter:

• Signal-to-Noise (SNR)： 120dB
• Seperation Degree： 85dB
• Frequency Response ：（20Hz20KHz） +/-1dB
• Maximun of output：2.2V
• Voltage：AC220V/50Hz
• Size：200*150*63 mm
