YAMAHA MusicCast VINYL 500 เครื่องเล่นแผ่นเสียง
Enjoy your vinyl 33 1/3 and 45 rpm records through your stereo system wirelessly or via RCA cables with the piano black Yamaha MusicCast VINYL 500 Wireless Two-Speed Stereo Turntable. It features an 8.8" tonearm tipped with a moving magnet (MM) cartridge and is equipped with Wi-Fi, Ethernet, Bluetooth, MusicCast, and AirPlay connectivity to provide modern connection options. Spotify Connect is onboard, allowing you to stream Spotify from your compatible device through the turntable to your sound system. The turntable also has an RCA phono output with a built-in preamp and an RCA line output to provide additional connection options.
Features- DbxsLr4MV-m3EOA_5T">
- Plays 33 1/3 and 45 rpm Vinyl Records
- Built-In Phono Preamp
- RCA Phono/Line Output
- Built-In Wi-Fi & Ethernet Connectivity
- Bluetooth, AirPlay, Spotify Connect
- Die-Cast Aluminum Platter
- Includes MM Cartridge
Wireless Transmission
Adding a modern spin to an "old-school" medium, you can wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast speakers, receiver, or other devices to enjoy your record collection without cables.
Designed for Versatility
With the VINYL 500, you can keep the music going by streaming from your music services via Wi-Fi, AirPlay, or Spotify Connect. Connect the turntable to add wireless connectivity to your existing stereo setup.
MusicCast Multi-Room Technology
With MusicCast multi-room technology and additional MusicCast speakers, you can share and listen to your record collection throughout the house.
App Control
With the MusicCast app, you can create favorites and control your multi-room music experience.
Voice Control with Alexa and MusicCast
Additional Features
- Static-balanced straight tonearm helps provide an open sound
- Belt-driven platter engineered for high inertia with a DC motor for stable rotation
- Built-in phono preamp for line or phono output to your legacy stereo system
Specification
Turntable
Rotation Speed 33 1/3, 45 rpm
Drive Method Belt-Drive
Motor DC
Wow and Flutter 0.2%
Signal to Noise Ratio
*A-Weighted, 20 kHz, LPF: 67 dB
*IHF-A Network, Infinity Zero, Fs 44.1 kHz: 110 dB
Dynamic Range 100 dB (1 kHz, -60 dB, Fs 44.1 kHz)
Harmonic Distortion 0.003% (1 kHz, 0 dB, Fs 44.1 kHz)
Frequency Response
*Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB)
*Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB)
*Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB)
*Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB)
Speed Drift ±2%
Turntable Platter 11.8" / 30 cm Die-Cast Aluminum
Tonearm
- Material Not Specified by Manufacturer
- Design Static-Balanced, Straight
- Effective Arm Length 8.8" / 223.5 mm
- Arm Weight Not Specified by Manufacturer
- Overhang 0.75" / 19 mm
- Cartridge Weight Acceptable: 0.55 to 0.67 oz / 15.5 to 19 g (Including Headshell)
Cartridge Specifications
Cartridge Type MM-Type
Frequency Range Not Specified by Manufacturer
Output Voltage 2.5 mV @ 1 kHz, 3.54 cm/sec
Output Level
*450 mV (-7 dBV with RIAA EQ, 1 kHz, 3.54 cm/sec)
*2.5 mV (±3 dBV, without RIAA EQ, 1 kHz, 3.54 cm/sec)
Height 17 ± 0.7 mmWeight
*Cartridge: 5 ±0.3 g
*Headshell: 10 g (Including Hardware)
Stylus
Replacement Not Specified by Manufacturer
Pressure Level 3.5 ± 0.5 g
Stylus Pressure Adjustment 0 to 4 g
Connectivity
Wi-Fi Dual-Band (2.4/5 GHz) Wi-Fi with MusicCast Connectivity and Spotify Connect
Bluetooth
*Version: 4.2
*Profiles: A2DP, AVRCP
*Codecs: SBC, AAC
*Range: Up to 32.8' / 10 mAirPlay Yes

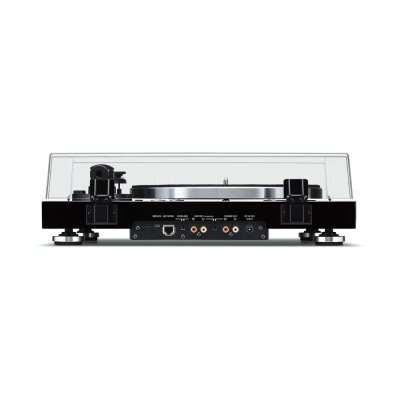

Output
*1 x Stereo RCA Phono
*1 x Stereo RCA Line
Output Level RCA: 2 ± 0.3 V (1 kHz, 0 dB, fS 44.1 kHz)
Other Connections
*1 x RJ45 Ethernet LAN
*1 x Micro-USB (Service)
File Formats MP3, WMA, FLAC, WAV, MPEG-4 AAC (up to 48 kHz / 16-bit), ALAC (up to 96 kHz / 24-bit), AIFF (up to 192 kHz / 24-bit), DSD (up to 11.2 MHz)
General
Power Requirements Not Specified by Manufacturer
Operating Power Consumption 6 W
Standby Power Consumption
*Network Standby On, Bluetooth Standby Off, Wired: 1.4 W
*Network Standby On, Wi-Fi On: 1.8 W
*Network Standby On, Bluetooth Standby On, Wired: 1.6 W
Dimensions (W x H x D) 17.75 x 5.38 x 14.5" / 45.09 x 13.65 x 36.83 cm
Weight 12.6 lb / 5.7 kg
