B&W DB-2D - Subwoofer Speaker

The DB2D subwoofer uses twin 10-inch Aerofoil cones identical to those found on the flagship 800 D3 loudspeaker. All powered by a highly-efficient 1000 Watt Class D amplifier.

Power and subtlety
With masses of power on tap, dual opposed drive units and an incredibly rigid cabinet that helps reduce distortion for deep, agile bass, the DB2D is the ideal subwoofer whatever the use scenario. It packs more than enough of a punch to excel at home cinema, but is agile and precise enough to bring depth to stereo recordings.

Aerofoil for precision bass
The DB2D uses Aerofoil cones identical to those found in the flagship 800 D3. These two 10-inch cones are light and ultra-stiff, and can resist bending and flexing far longer than conventional cones, delivering controlled bass with outstanding precision.

Balanced drivers
The DB2D subwoofer uses two bass cones arranged in an opposed, balanced configuration that greatly reduces cabinet vibration and ensures a cleaner, more precise sound. The result: fantastic, coloration-free bass.
Balanced drivers

Digital
Thanks to an all-new digital pre-amplifier, the DB2D subwoofers awesome power is always delivered at optimum levels. Bespoke features such as Dynamic EQ and Room EQ ensure precision performance in every circumstance such as home cinema, custom installation or two-channel Hi-Fi.

**Specification

Model DB2D

Description DB Series Subwoofer

Technical features

*1000w Class D Hypex amplifier

*2 x 250mm (1

0in) Aerofoil-cone drive units in a balanced configuration*Digital preamplifier with Dynamic EQ,

*App-based set-up and BT-LE control

Drive units 2 x 250mm (10in) Aerofoil-cone drive units in a balanced configuration

Frequency range (-6dB) 8.5Hz - 500Hz

Frequency Response -3dB (centred on level at 100Hz) 10Hz - 350Hz

Max power output 1000W

Inputs

*2 x XLR

*2 x RCA

*2 x 3.5mm 12V trigger

*RS-232 9-pin D connector

Dimensions

*Height: 430mm (16.9in)

*Width: 377mm (14.8in)

*Depth: 360mm (14.2in)

Net weight 36kg

Cabinet Finish (Grille Finish)

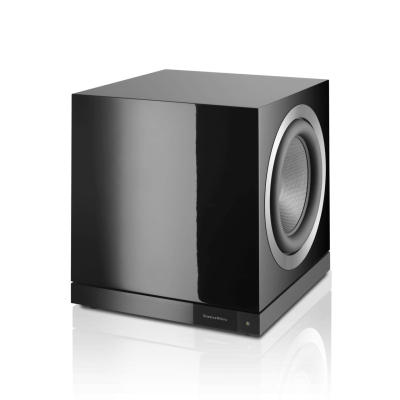

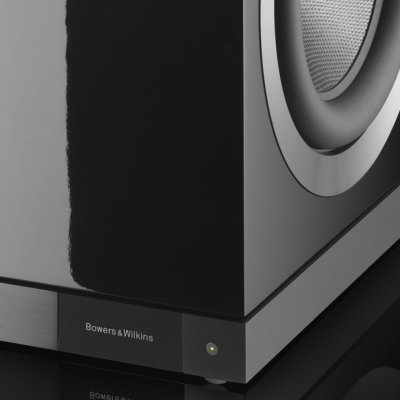

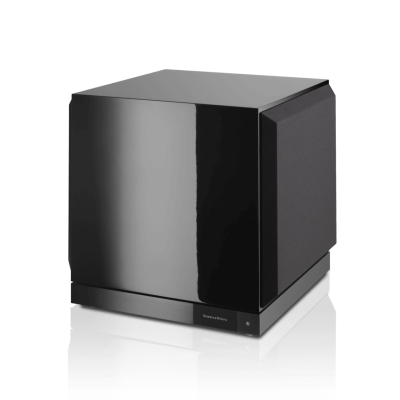

Gloss Black (with black grilles)

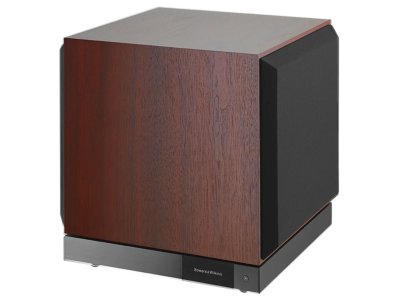

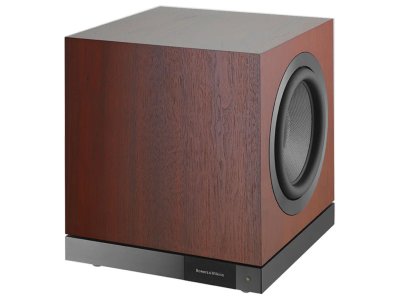

Rosenut (with black grilles)

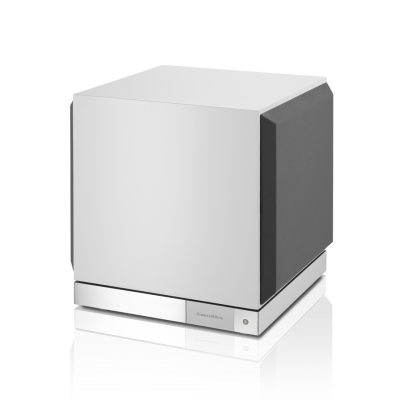

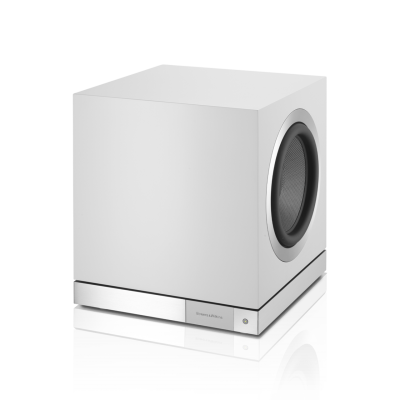

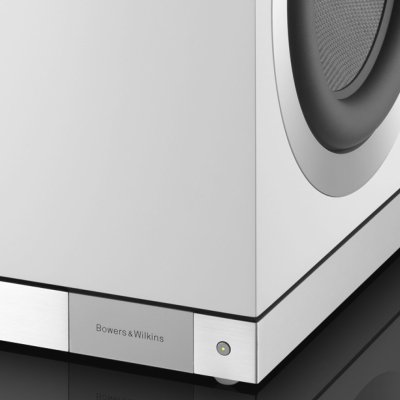

Satin White (with grey grilles)
