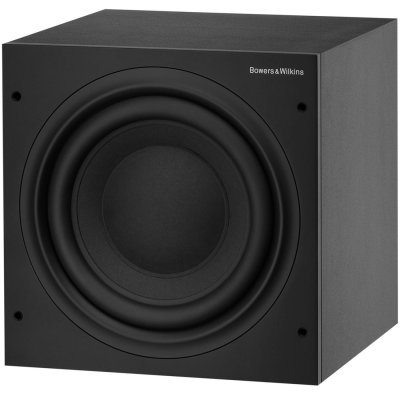

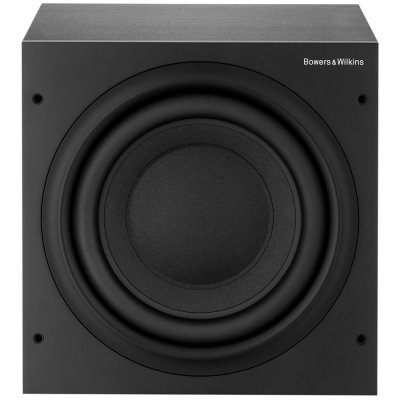

B&W ASW-610XP (BLACK ASH) - Subwoofer Speaker
The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch or finishing thump to a hi-fi or home theatre system for larger rooms.
The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch or finishing thump to a hi-fi or home theatre system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the units 500W amplifier, long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry, the unit remains cool and efficient under pressure.

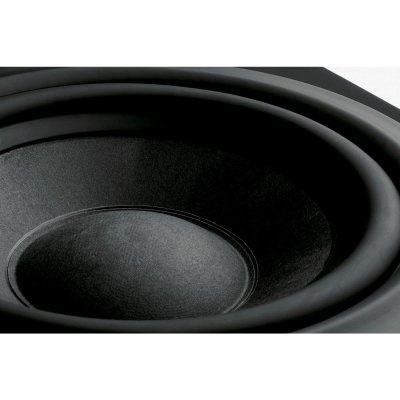

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
**Main Features & Specifications
Design: Active closed-box subwoofer
Drive Unit: 1x 250mm (10") paper/Kevlar® cone long-throw
Frequency Range: -6dB at 18Hz and 25/140Hz adjustable (EQ at A)
Frequency Response: 3dB 25Hz 40/140Hz adjustable (EQ at A)
Bass Extension: -6dB at 18Hz (position A), -6dB at 23Hz (position B), -6dB at 28Hz (position C)
Low-Pass Filter: Active 4th-order, variable cut-off frequency
Amplifier Power Output: 500 Watt
Rated Power Consumption: 98 Watt/ 1 Watt standby
Impedance: 33k Ohms
Signal/noise: 90dB
Functions:
*Volume level line in
*Volume level speaker in
*Low-pass filter frequency
*Low-pass filter bypass (line in only)
*Bass extension
*Bass roll-off alignment
*Auto sense on/standby
*Phase switch

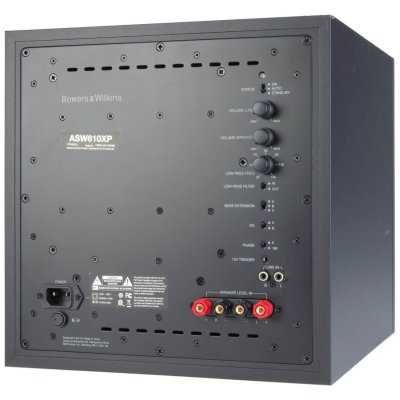

Inputs:
*Line In (RCA Phono),
*Speaker in (Binding post),
*12v trigger (3.5mm jack)
Dimensions (WxHxD): 325 x 325 x 374mm
Finishes: Matte White, Matte Black
Nett Weight: 18.65kg
Manufacturers Warranty: 2-Years (Covers faulty workmanship and materials, but not abuse)
