B&W CWM-8.3D 2-WAY IN WALL LOUDSPEAKER

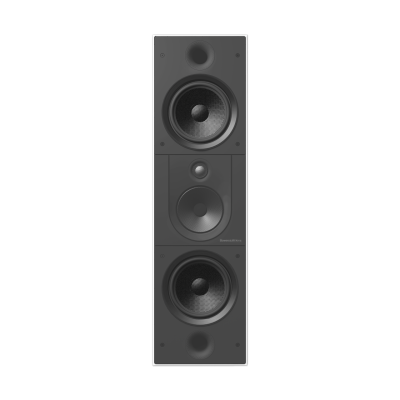

CWM8.3 D is a three-way in-wall speaker. It features a decoupled Diamond dome 25mm (1 inch) tweeter, a 130mm (5-inch) Continuum FST midrange drive unit and two 180mm (7-inch) Aerofoil bass drivers. The central baffle is rotatable, so CWM8.3 D can be used in either vertical or horizontal alignment.

CWM8.3 D is engineered to offer the very best performance for a customer requiring great sound without seeing the source. A three-way model, it features a decoupled Diamond dome 25mm (1 inch) tweeter, a 130mm (5-inch) Continuum FST midrange drive unit and two 180mm (7-inch) Aerofoil bass drivers.

The most accurate high-frequency drive unit available, the exceptionally stiff and light Diamond diaphragm ensures pure, distortion-free treble. CWM8.3 D also includes a dark Continuum FST driver for pristine midrange sound. The ranges only three-way loudspeaker also benefits from using ultra-light yet exceptionally stiff low-frequency Aerofoil drivers for incredible bass performance.

CWM8.3 Ds back box is fully Matrix braced, for extra rigidity and improved performance. The back box also includes bi-wirable cables that are guided to the terminal panel through tubes and connect to the baffle with a multi-pin connector. CWM8.3 D has also been developed to fit into existing back boxes enabling customers who purchased the original CWM8.3 to easily upgrade.

**Specifications

Model CWM8.3 D

Description 3-way in-wall loudspeaker

Technical features

*Aluminium mini baffle can be turned through 90 degrees

*Diamond Dome,

*Nautilus tube-loaded tweeter

*Anti-resonance plug

*Flowport*FST midrange unit

*Carbon Aerofoil bass drivers

Drive units:

*1x ø25mm (1in) Diamond Dome, Nautilus tube-loaded tweeter

*1x ø130mm (5in) Continuum midrange driver

*2 x ø180mm (7in) Aerofoil Bass drivers

Frequency range (-6dB) 30Hz - 35kHz

Recommended Amplifier Power 200W

Sensitivity 89dB

Nominal Impedance 8Ω

Frame height 880mm (34.6in)

Frame width 254mm (10in)

Cut-out height 864mm (34in)

Cut-out width 238mm (9.4in)

Protrusion 8mm (0.3in)

Net weight 10.9kg

Back Box BB CWM8.3
