B&W CWM-8.5D 2-WAY IN WALL LOUDSPEAKER

Drive Units
*1x ø25mm (1in) Diamond Dome,
*Nautilus tube-loaded tweeter
*1x ø180mm (7in) Continuum cone bass/midrange driver with anti-resonance plug​

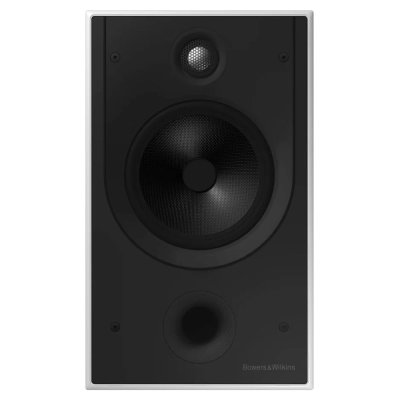

CWM8.5 D is engineered to deliver the best possible sound from a relatively compact speaker. A two-way in-wall model, it features a decoupled Diamond dome 25mm (1 inch) tweeter and a single 180mm (7-inch) bass/mid Continuum driver.

The most accurate high-frequency drive unit available, the exceptionally stiff and light Diamond diaphragm ensures pure, distortion-free treble. CWM8.5 D also includes a dark Continuum bass/mid driver for pristine midrange and low end sound.

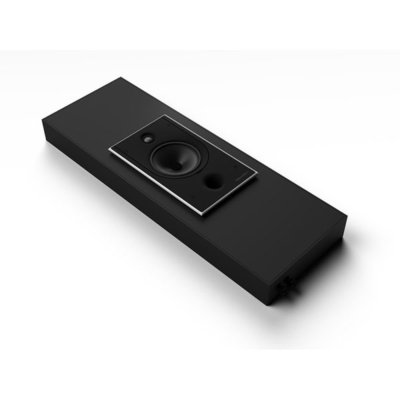

CWM8.5 Ds back box is fully Matrix braced, for extra rigidity and improved performance. The back box also includes bi-wirable cables that are guided to the terminal panel through tubes and connect to the baffle with a multi-pin connector. CWM8.5 D has also been developed to fit into existing back boxes enabling customers who purchased the original CWM8.5 to easily upgrade.

**Specifications

Model CWM8.5 D

Description 2-way in-wall loudspeaker

Technical features

*Diamond Dome,

*Nautilus tube-loaded tweeter

*Anti-resonance plug

*Flowport

Drive units :

*1x ø25mm (1in) Diamond Dome,

*Nautilus tube-loaded tweeter

*1x ø180mm (7in) Continuum cone bass/midrange driver with anti-resonance plug

Frequency range (-6dB) 35Hz - 35kHz

Recommended Amplifier Power 120W

Sensitivity 89dB

Nominal Impedance 8Ω

Frame height 411mm (16.2in)

Frame width 247mm (9.7in)

Cut-out height 395mm (15.5in)

Cut-out width 231mm (9.1in)

Protrusion 8mm (0.3in)

Net weight 3.5kg

Back Box BB CWM8.5
