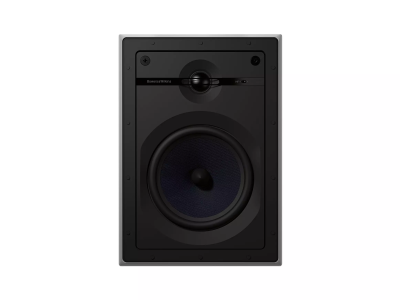

B&W CWM-663 2-WAY IN WALL SYSTEM
Drive Units
*1x ø25mm (1in) Nautilustube loaded aluminium dome tweeter
*1x ø150mm (6in) blue Kevlar®cone bass/midrange
The CWM663 features a 150mm (6in) blue Kevlar® bass/midrange driver housed in a die-cast chassis, providing extra rigidity for cleaner, faster bass. The speaker also incorporates a 25mm (1in) Nautilus tube-loaded aluminium dome tweeter, and a three-position high frequency switch for acoustic fine-tuning. Installation is almost effortless, thanks to our new QuickDogs fixing system **Specifications
Description 2-way in-wall system
Drive units
*1x ø25mm (1in) Nautilustube loaded aluminium dome tweeter
*1x ø150mm (6in) blue Kevlar®cone bass/midrange
Frequency Range (-6dB) 45Hz 50kHz
Maximum Amp Power 25 150w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8? (4.5?)
Frame height 315mm (12.4in)
Frame width 221mm (8.7in)
Cut-out height 279mm (11in)
Cut-out width 183mm (7.2in)
Depth behind surface 95mm (3.7in)
Protrusion 4mm (0.2in)
Pre-mount Kit PMK W6
Back Box BB 6W
