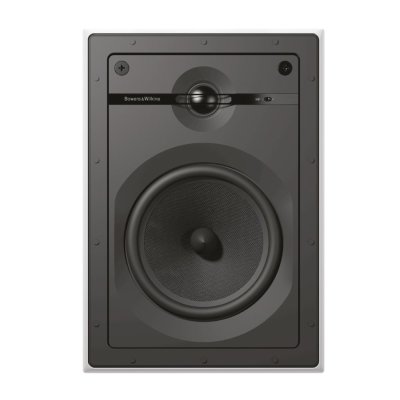

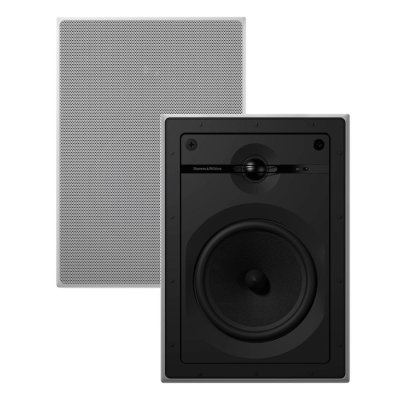

B&W CWM-664 2-WAY IN WALL SYSTEM

Drive Units
*1x ø25mm (1in) Nautilus tube loaded aluminium dome tweeter
*1x ø150mm (6in) black glassfibre cone bass/midrange

The CWM664 has the same basic features and dimensions as the CWM663, but uses a soft dome Nautilus tube-loaded tweeter instead of an aluminium dome, and a black glass fibre bass/midrange cone instead of blue Kevlar®. Installation is just as easy, thanks to our new QuickDogs fixing system and plug-and-play connection.

**Specifications
Description 2-way in-wall system

Drive units

*1x ø25mm (1in) Nautilus tube loaded aluminium dome tweeter

*1x ø150mm (6in) black glassfibre cone bass/midrange

Frequency Range (-6dB) 45Hz 35kHz

Maximum Amp Power 25 130w

Sensitivity SPL (2.83V, 1m) 87.5dB

Impedance Nominal (min) 8? (4.5?)

Frame height 315mm (12.4in)

Frame width 221mm (8.7in)

Cut-out height 279mm (11in)

Cut-out width 183mm (7.2in)

Depth behind surface 95mm (3.7in)

Protrusion 4mm (0.2in)

Pre-mount Kit PMK W6

Back Box BB 6W
