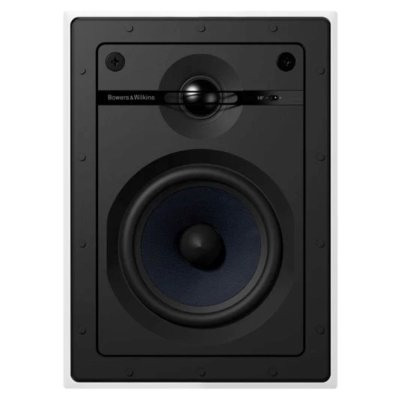

B&W CWM-652 2-WAY IN WALL SYSTEM

Drive Units
*1x ø25mm (1in) Nautilus tube loaded aluminium dome tweeter
*1x ø130mm (5in) blue Kevlar® cone bass/midrange​

The CWM652 features a 130mm (5in) blue Kevlar® bass/midrange driver is housed in a die-cast chassis, providing extra rigidity for cleaner, faster bass.

Slightly smaller than its two bigger cousins, the CWM652 still packs a very powerful punch thanks to top-range technologies. Its 130mm (5in) blue Kevlar® bass/midrange driver is housed in a die-cast chassis, providing extra rigidity for cleaner, faster bass. The speaker also incorporates a 25mm (1in) Nautilus tube-loaded aluminium dome tweeter, and a three-position high frequency switch for acoustic fine-tuning. Installation is almost effortless, thanks to our new QuickDogs fixing system and plug-and-play connection.

**Specifications
Description 2-way in-wall system

Drive units

*1x ø25mm (1in) Nautilus tube loaded aluminium dome tweeter

*1x ø130mm (5in) blue Kevlar® cone bass/midrange

Frequency Range (-6dB) 54Hz 50kHz

Maximum Amp Power 25 100w

Sensitivity SPL (2.83V, 1m) 86dB

Impedance Nominal (min) 8? (4.5?)

Frame height 264mm (10.9in)

Frame width 191mm (7.5in)

Cut-out height 228mm (9in)

Cut-out width 153mm (6in)

Depth behind surface 95mm (3.7in)

Protrusion 4mm (0.2in)

Pre-mount Kit PMK W5

Back Box BB 6W
