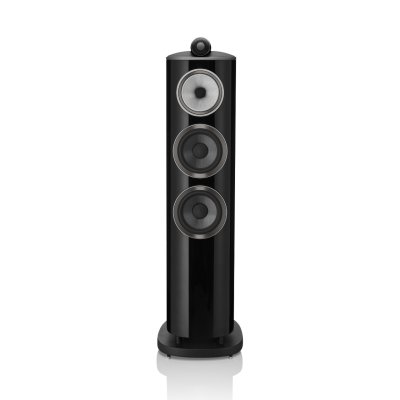

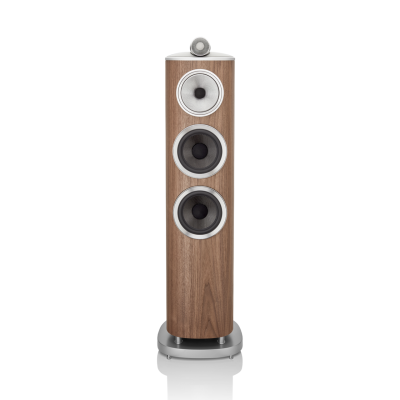

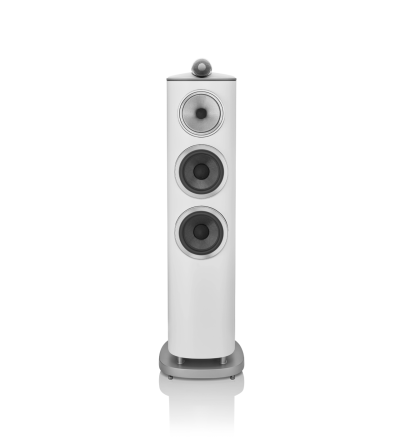

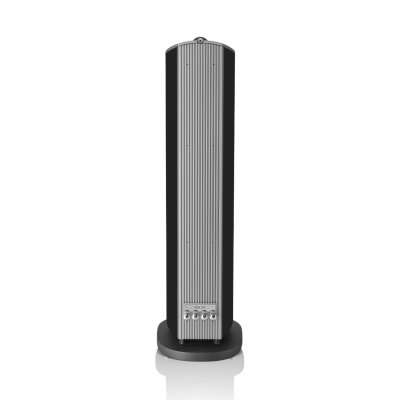

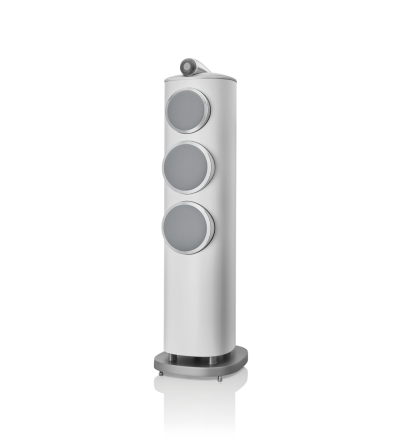

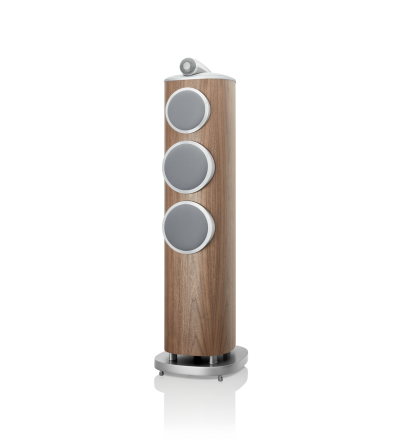

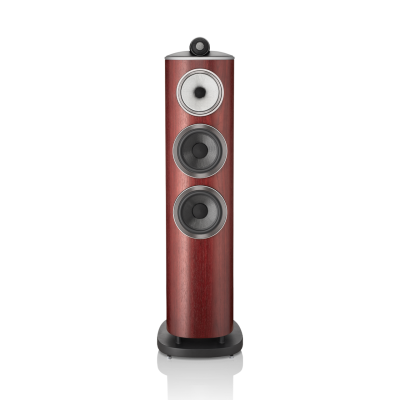

B&W 804 D4 Floor-standing speaker

For listeners who crave the performance of an 800 Series Diamond floorstander but prefer a more conventional aesthetic, the 804 D4 is the perfect choice. Its new cabinet and plinth make it our best-performing 804 yet.

*Classic quality

804 D4 is perhaps more conventional in appearance than other floorstanders in the 800 Series Diamond range, but its every bit as sophisticated. Its new Reverse-Wrap cabinet is both a mechanical and acoustic revolution in its class, and its new plinth ensures rock-solid, accurate bass response too.

*Aluminium top-plate

Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet with an all-new aluminium top-plate. This also provides a perfect mounting point for all-new Leather by Connolly trim, with luxurious black leather for dark cabinets and light grey for lighter finishes.

*Reverse Wrap cabinet

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

*Get a Head

804 D4 is the entry-level floorstanding model in the 800 Series Diamond range. Step up to 803 D4 and youll find larger bass drivers (180mm, 7in) plus, crucially, the addition of a Turbine Head enclosure for the 130mm (5in) midrange cone, which adds even more spaciousness to the sound.

**Technical specifications

Technical features

• Diamond tweeter
• Solid body Tweeter-on-Top
• Continuum cone FST
• Anti-Resonance plug
• Biomimetic Suspension
• Turbine Head
• Matrix
• Aerofoil cone bass units
• Flowport

Description
3-way vented-box system

Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø180mm (7in) Aerofoil cone bass units

Frequency range
16Hz to 35kHz

Frequency response
19Hz to 28kHz (+/-3dB from reference axis)

Sensitivity
90dB (on axis at 2.83Vrms at 1m)

Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 80Hz 20kHz
<0.3% 100Hz 20kHz

Nominal impedance
8Ω (minimum 3.0Ω)

Recommended amplifier power
50W 500W into 8Ω on unclipped programme

Max. recommended cable impedance
0.1Ω

Dimensions
Height: 1165mm
Width: 357mm
Depth: 511mm

Net weight
62.15kg
