Rotel A-11 MKII

The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

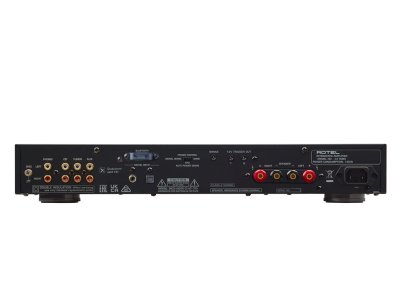

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX HD Bluetooth. An 1/8 headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

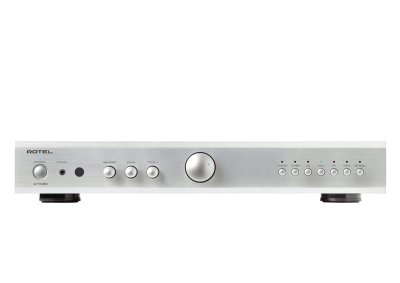

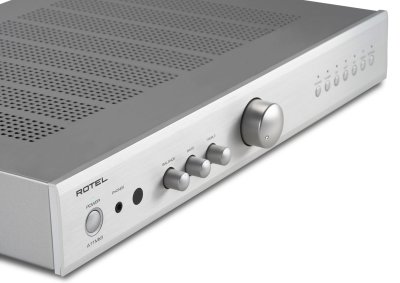

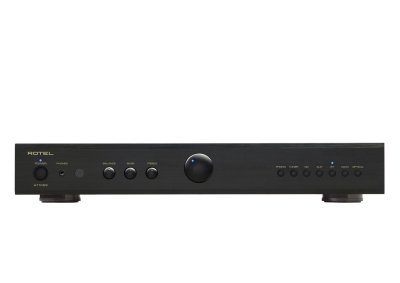

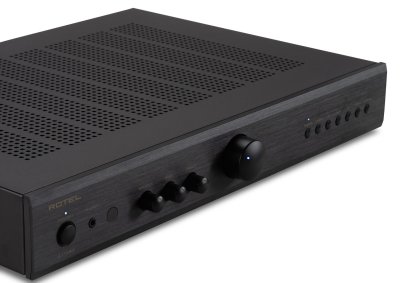

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.

The A11MKII is available in both black and silver colors.

Specifications

DIMENSIONS (W × H × D)
430 x 73 x 347 mm
17 x 2 7/8 x 13 5/8

FRONT PANEL HEIGHT
60 mm / 2 3/8

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
150W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
6.8kg (15lbs.)

BTU RATING (4Ω, 1/8th power)
450 BTU/h

POWER OUTPUT
50W/Ch (8Ω)
62W/Ch (4Ω)

TOTAL HARMONIC DISTORTION (THD)
<0.03%

FREQUENCY RESPONSE
Line Level Inputs: 10Hz 100kHz, -0.5dB， +0.05dB
Phono Input: 20Hz 20kHz, -0.5dB, +0.3dB

S/N RATIO (IHF A Weighted)
Line Level Inputs: 90dB
Phono Input: 85dB
